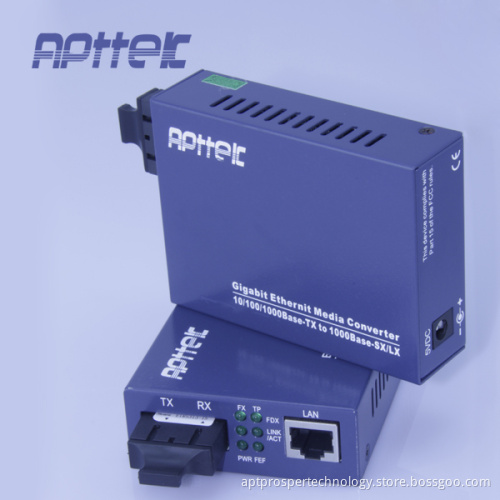

10/100/1000m Single-Mode 20km Media Converter (APT-1124S33OC)

Get Latest Price

Payment Type:: L/C, T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Payment Type:	L/C, T/T, Paypal

Product Description

APT-1124S33OC Gibabit media converter is 10/100/1000M Dual-fiber with transmittal distance up to 20KM Self-adapt fiber optic media converter, and external power supply with media converter.

APT-1124S33OC Gigabit Self-Adapt fiber optic media converter
Dual-fiber dual-direction fiber optic media converter be used to Ethernet's electricity signal switch to photosignal's transmitter. Its feature is the media converter's RJ-45 interface can auto-identify with couple equipment port speed and pass autoconditioning working frequency to match with couple equipment port, the speed can adjust 10M 100M and 1000M. Due to built-in power independent optical port and working mode, can improve the stability and capability in working.

APT-1124S33OC is a self-adapt gigabit singlemode double-fiber media converter. The transmit photosignal is 1550nm and 1310nm; Have one RJ-45 interface and one SC single-fiber interface, separate used to connecting twisted-pair and fiber. Single fiber media converter have 6 LED indicator:
POWER, SPDFX1000, SPDTX1000, FX Link/Act, TX Link/Act, FDX.

Specification
Connect type: SC
Fiber type: Singlemode
Wavelength: 1310nm
Typical distance: 20km
MinTXPWR: -6.0dBm
Max TX PWR: -1.0dBm
Sensitivity: < -21dBm
Link Budget: 15.0dBm
