Product Description
Product Description
Name: 10/100M cassette optical media converter
Type: APT-103S34CC
Scale: 10/100M optical transmission converter

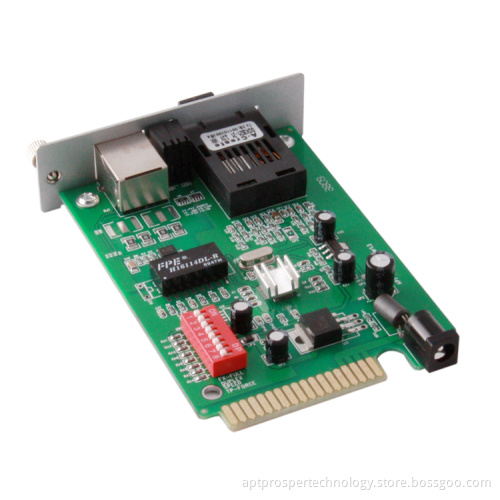

APT-103S34CC Optical Media Converter
Dual-fiber dual-direction fiber optic media converter be used to Ethernet's electricity signal's transmit to photosignal's photoelectricity signal transceiver. The feature is use one pair optical fiber to transmit and receiver photosignal's in-phase. Due to signal use optic pulse's form in fiber optic transmit signal, so relative to copper lead have more excellence: Security, dependability, transmit speed, transmit distance are adapt LAN, MAN, adopt modularization design convenient for media converter rack mount to collect manage.
APT-103S34CC is 10/100M self-adapt dual-fiber dual-direction cassette fiber optic media converter and. According to IEEE802.3, IEEE802.3u, 10BaseTX, 100Base-FX standard.
APT-103S34CC is a singlemode 10/100M dual-fiber media converter module. Dual-fiber dual-direction media converter have one RJ-45 interface and one SC single-fiber interface, separate for twisted-pair and fiber to connecting. Single-fiber media converter have 6 LED indicator: POWER, TX100, FX100, FX Link/ACT, TX Link/ACT, FDX.
Technical parameter
1. According with IEEE802.3 IEEE802.3u IEEE802.3X IEEE802.1Q 100Base-TX 100Base-TX 100Base-FX standard.
2. Afford TCP/IP, PPPOE, DHCP, ICMP, NAT protocol.
3. Flow control: Full-duplex adopt IEEE802.3x, half-duplex adopt Backpressure standard.
4. Electric port support auto-negotiation function, autoconditioning transmit mode and transmit speed.
5. Port supply Auto-MDI/MDIX automatic reverse.
6. Support storage transmit mode.
7. Support electric port's 10M 100M mode and self-adapt mode to switch.
8. Afford the state indicator, external power(output 5V~50Hz 1A)
9. Interface: Electric port: RJ-45 fiber port: SC
10. Twisted-pair: Cat5 CAT6
11. Singlemode fiber: 8/125, 8.3/125, 9/125uM
12. Working temperature: 0~50 degree
13. Storage temperature: -20~70 degree
14. Humidity: 5%~90%(noncondensing)
15.115*77*26mm(L*W*H)
Specification
Connect type: SC
Fiber type: Multimode Wavelength: 1310nm
Typical distance: 40KM
Min TX PWR: -8.0dBm
Max TX PWR: 0.0dBm
Sensitivity: -32.0dBm
Link Budget: 24.0dBm
Type: APT-103S34CC
Scale: 10/100M optical transmission converter
APT-103S34CC Optical Media Converter
Dual-fiber dual-direction fiber optic media converter be used to Ethernet's electricity signal's transmit to photosignal's photoelectricity signal transceiver. The feature is use one pair optical fiber to transmit and receiver photosignal's in-phase. Due to signal use optic pulse's form in fiber optic transmit signal, so relative to copper lead have more excellence: Security, dependability, transmit speed, transmit distance are adapt LAN, MAN, adopt modularization design convenient for media converter rack mount to collect manage.
APT-103S34CC is 10/100M self-adapt dual-fiber dual-direction cassette fiber optic media converter and. According to IEEE802.3, IEEE802.3u, 10BaseTX, 100Base-FX standard.
APT-103S34CC is a singlemode 10/100M dual-fiber media converter module. Dual-fiber dual-direction media converter have one RJ-45 interface and one SC single-fiber interface, separate for twisted-pair and fiber to connecting. Single-fiber media converter have 6 LED indicator: POWER, TX100, FX100, FX Link/ACT, TX Link/ACT, FDX.
Technical parameter
1. According with IEEE802.3 IEEE802.3u IEEE802.3X IEEE802.1Q 100Base-TX 100Base-TX 100Base-FX standard.
2. Afford TCP/IP, PPPOE, DHCP, ICMP, NAT protocol.
3. Flow control: Full-duplex adopt IEEE802.3x, half-duplex adopt Backpressure standard.
4. Electric port support auto-negotiation function, autoconditioning transmit mode and transmit speed.
5. Port supply Auto-MDI/MDIX automatic reverse.
6. Support storage transmit mode.
7. Support electric port's 10M 100M mode and self-adapt mode to switch.
8. Afford the state indicator, external power(output 5V~50Hz 1A)
9. Interface: Electric port: RJ-45 fiber port: SC
10. Twisted-pair: Cat5 CAT6
11. Singlemode fiber: 8/125, 8.3/125, 9/125uM
12. Working temperature: 0~50 degree
13. Storage temperature: -20~70 degree
14. Humidity: 5%~90%(noncondensing)
15.115*77*26mm(L*W*H)
Specification
Connect type: SC
Fiber type: Multimode Wavelength: 1310nm
Typical distance: 40KM
Min TX PWR: -8.0dBm
Max TX PWR: 0.0dBm
Sensitivity: -32.0dBm
Link Budget: 24.0dBm
