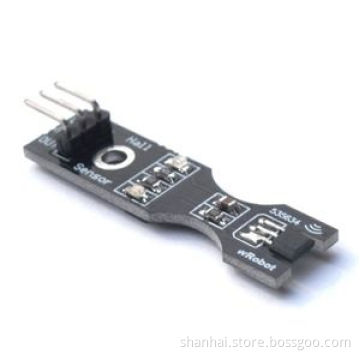

Wrobot Hall Velocity Measurement Sensor

Wrobot Hall Velocity Measurement Sensor

Specification:

1, High sensitivity of 3144 Hall sensor.

2, The digital quantity pulse output,; Level change when cutting magnetic induction line.

3, Schmidt trigger, Adjustable Sensitivity, Stable Performance.

4, 5V Working Voltage, output high level when cutting magnetic induction line (red light put out).

5, Used for motor velocity measurement (need magnets)

6, Applicable to a variety of platforms including Arduino / AVR / ARM.

Click here to download schematic diagram
