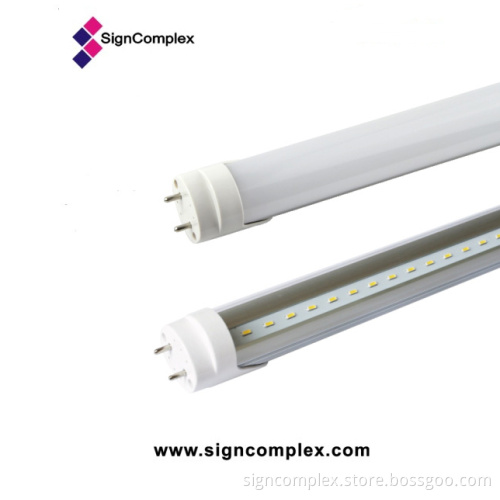

2014signcomplex SMD4014 led T8 tube
Much longer life than CFL tube: Min. 10 years (at an average usage of 8 hours per day).
-70%~80% Energy-saving over Fluorescent tubes.
-Solid State, high shock/vibration resistance.
-Work without ballast, Instant soft-start.
-No RF interference, No flickering or buzzing.
-Quick and easy installation to minimize retrofit costs.
-Minimum maintenance costs, generates little Heat.
-No Mercury and other hazardous materials, fully RoHS-compliant.
-Continuous operation for white LEDs (10 years for other colors).
-Rated to operate from -4° F to 104° F [-20° C to 40° C], perfect for
Environments with extreme climates.
-Epistar+Intermatix LED packaging solution, non patent-infringing.
-Modern design.
-Highly cost-effective.
-Completely insulated electrical design for maximum safety.
Feature
- Cost-effective.
- Custom-designed built-in driver, with reliable performance and long lifespan.
- UL & TUV certified circuit design.
- No risk of electric shock during installation.
- Compatible with existing inductive ballast fixtures, reducing installation cost
And maintaining the warranty of the whole fixture.
Technical Parameters
Standard length: 60cm, 120cm and 150cm.
Rated input voltage: 100-240V AC, 50/60Hz, maximal input voltage 277V AC.
PF (power factor): >0.90.
DC 12/24V available.
Much longer life than CFL tube: Min. 10 years (at an average usage of 8 hours per day).
-70%~80% Energy-saving over Fluorescent tubes.
-Solid State, high shock/vibration resistance.
-Work without ballast, Instant soft-start.
-No RF interference, No flickering or buzzing.
-Quick and easy installation to minimize retrofit costs.
-Minimum maintenance costs, generates little Heat.
-No Mercury and other hazardous materials, fully RoHS-compliant.
-Continuous operation for white LEDs (10 years for other colors).
-Rated to operate from -4° F to 104° F [-20° C to 40° C], perfect for
Environments with extreme climates.
-Epistar+Intermatix LED packaging solution, non patent-infringing.
-Modern design.
-Highly cost-effective.
-Completely insulated electrical design for maximum safety.
Feature
- Cost-effective.
- Custom-designed built-in driver, with reliable performance and long lifespan.
- UL & TUV certified circuit design.
- No risk of electric shock during installation.
- Compatible with existing inductive ballast fixtures, reducing installation cost
And maintaining the warranty of the whole fixture.
Technical Parameters
Standard length: 60cm, 120cm and 150cm.
Rated input voltage: 100-240V AC, 50/60Hz, maximal input voltage 277V AC.
PF (power factor): >0.90.
DC 12/24V available.
Type | Model No. | Color | LED Type | LED Q'ty | CCT |
Power Consumption( W ) |
CRI | Lumen (lm) |
Frosted Cover |
LT8-009-AW- W W-0 2 F | Warm White | SMD4014 | 52 | 2800 - 3200 K | 9 | ≥70 | 860 |
LT8-009-AW-NW-0 2 F | Natural White | 4000-4500 K | ≥70 | 820 | ||||
LT8-009-AW-W-0 2 F | White | 5700-6300 K | ≥70 | 910 | ||||
LT8-0 18 -AW- W W-0 2 F | Warm White | SMD4014 | 110 | 2800 - 3200 K | 18 | ≥70 | 1820 | |
LT8-0 18 -AW-NW-0 2 F | Natural White | 4000-4500 K | ≥70 | 1710 | ||||
LT8- 018 -AW-W-0 2 F | White | 5700-6300 K | ≥70 | 1890 | ||||
LT8-0 22 -AW- W W-0 2F | Warm White | SMD4014 | 130 | 2800 - 3200 K | 22 | ≥70 | 1890 | |
LT8-0 22 -AW-NW-0 2F | Natural White | 4000-4500 K | ≥70 | 2190 | ||||
LT8-0 22 -AW-W-0 2F | White | 5700-6300 K | ≥70 | 2240 | ||||
Clear Cover |
LT8-009-AW- W W-0 2 C | Warm White | SMD4014 | 52 | 2800 - 3200 K | 9 | ≥70 | 970 |
LT8-009-AW-NW-0 2 C | Natural White | 4000-4500 K | ≥70 | 940 | ||||
LT8-009-AW-W-0 2 C | White | 5700-6300 K | ≥70 | 1020 | ||||
LT8-0 18 -AW- W W-0 2 C | Warm White | SMD4014 | 110 | 2800 - 3200 K | 18 | ≥70 | 2020 | |
LT8-0 18 -AW-NW-0 2 C | Natural White | 4000-4500 K | ≥70 | 1897 | ||||
LT8- 018 -AW-W-0 2 C | White | 5700-6300 K | ≥70 | 2137 | ||||
LT8-0 22 -AW- W W-0 2C | Warm White | SMD4014 | 130 | 2800 - 3200 K | 22 | ≥70 | 2312 | |
LT8-0 22 -AW-NW-0 2C | Natural White | 4000-4500 K | ≥70 | 2435 | ||||
LT8-0 22 -AW-W-0 2C | White | 5700-6300 K | ≥70 |
2500 |
