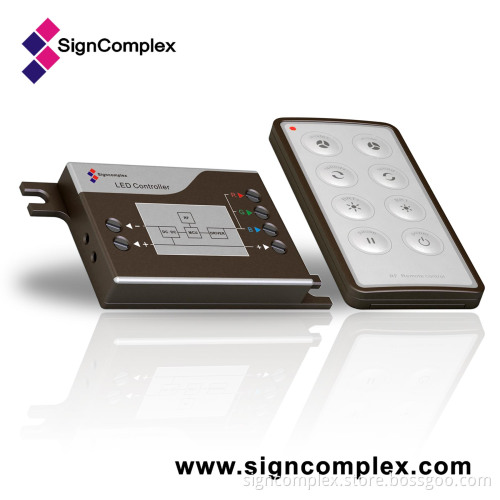

Mini RGB LED Controller (LC-0RGB-D5-06)

Mini RGB LED controller

Features
1. Compatible with all common RGB strips and low voltage RGB lamps, built-in 16 modes and can be control LED by a small key board.
2. Automatically adapt to LED light which works at DC12V or DC24V.
3. Hardware PWM dimmer without any flashes.
4. High-power MOS driver, the whole current of the RGB three channels reaches to 12A.
5. Compatible with WC12 also.

Technical parameter
Input voltage: 12/24V DC
Output channel: Three channels of RGB
Output Current: 4A for each channel
Output Power: 144W(12V input)/288W(24V input)
Weight: 22g

Function Description
1. 16 Modes, such as 7 colors static mode (dimming alone), 7 colors jump and fade/smooth (also have the pause function)
2. 50 levels brightness adjustment
3. 50 levels speed adjustment
