Submersible Turbing Pump (Fuel Pump)
- Payment Type:
- L/C, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, Western Union |
Product Description
Product Description
Product Description

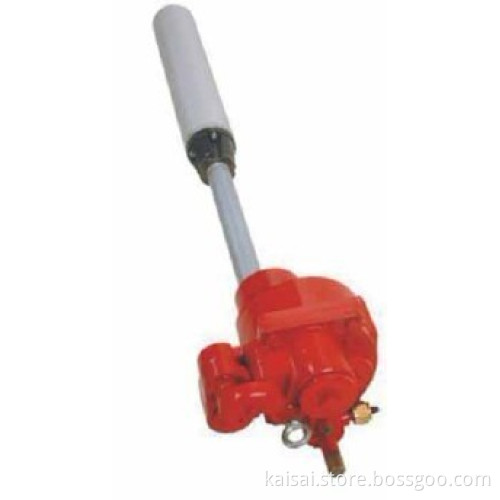

Submersible Turbing Pump(Fuel Pump)(QYB-240)
Advantages: 1. Best performance, long time service, lower noise
2. Easy to install and service. Quick, simple and safe electrical connections
3. Manifold allows for vertical or horizontal discharge
4. Save time, lower service costs
5. Built with check valve, by pass valve, vacuum valve
6. For diesel, gasoline, kerosene, etc.
7. Vapor-free, suction head longer than suction pump
Certificate:
*ATEX; ISO 9001; UL; CE; SONCAP; OIML; PEI etc;
Introduction of Kaisai and Petroleum Equipment:
1. Shenzhen Kaisai Electric Motor Co., Ltd. is one of biggest fuel dipsnenser manufacturer with good reputation in China. Established in 1991 and located in Shenzhen (next to Hong Kong), a main port in China.
2. We manufacture A, B, D, E, G, N types seriese fuel dispenser equipment,
However, Hi-Flow Type Petrol station pump (KCM-SK200G 222Z) was designed for it's high flow rate, 90L, 180L, 280L Per min., Especially with it's economical cost which catch much of customer's Preference from all over the world. 4 kinds of inner equipments for your choice, such as Tokhiem pump, Wayne Dispenser, Tatsuno pump, Gilbarco pump, we will give you soonest reply when received your inquiry, looking forward to cooperation with you!
Advantages: 1. Best performance, long time service, lower noise
2. Easy to install and service. Quick, simple and safe electrical connections
3. Manifold allows for vertical or horizontal discharge
4. Save time, lower service costs
5. Built with check valve, by pass valve, vacuum valve
6. For diesel, gasoline, kerosene, etc.
7. Vapor-free, suction head longer than suction pump
Certificate:
*ATEX; ISO 9001; UL; CE; SONCAP; OIML; PEI etc;
Introduction of Kaisai and Petroleum Equipment:
1. Shenzhen Kaisai Electric Motor Co., Ltd. is one of biggest fuel dipsnenser manufacturer with good reputation in China. Established in 1991 and located in Shenzhen (next to Hong Kong), a main port in China.
2. We manufacture A, B, D, E, G, N types seriese fuel dispenser equipment,
However, Hi-Flow Type Petrol station pump (KCM-SK200G 222Z) was designed for it's high flow rate, 90L, 180L, 280L Per min., Especially with it's economical cost which catch much of customer's Preference from all over the world. 4 kinds of inner equipments for your choice, such as Tokhiem pump, Wayne Dispenser, Tatsuno pump, Gilbarco pump, we will give you soonest reply when received your inquiry, looking forward to cooperation with you!
Rating Pressure | 0.1MPa |
Max Flow Rate | 200L/min, 240L/min |
Rotate Speed | 2820rmp |
Voltage | 220V, 50Hz |
Current | 9A |
Power | 1.1Kw/1.5H, 1.3Kw/1.8H |
Ex-proof Class | 1P*6 |
Fixation Thread | BSPF4” BSPF/NPT4” |
Inlet | BSPF1” BSPF/NPT1” |
Outlet: NPT2” | |
Adjustable Pressure | 21KPa-207KPa |
FactoryPressure Range | 79KPa-93KPa |
Working Pressure | > 34KPa |
Package | 1pcs/2carton |
Net Weight | 40kg |
Gross Weight | 41kg |
Dimension | 360*280*370mm 730*170*170mm |
