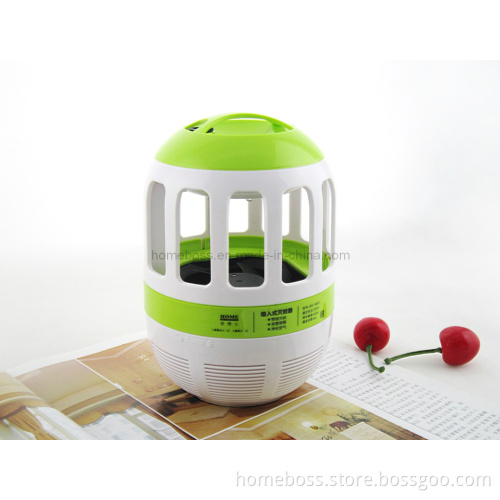

Mosquito Trap / Electric Mosquito Trap / Mosquito Killer 6W

Operating Instruction for Inhalant Mosquito Trap

Operating principle:
This product uses LED ultraviolet light resource with 360-400nM wavelength, which can effectively attract mosquitoes near the periphery of the light source. When mosquito is approaching to the light source, it will be inhaled into the mosquito stroage box by cyclonic airflow generated by the DC fan, and afterward being dried dehydrated to death.

Product Features:
Attempts to prevent the transfer chip DC motor, ultra-quiet, high wind, long life, super energy saving.
LED mosquito ultraviolet light, higher brightness and longer life, more stable wavelengths.
Funnel-shaped mosquito against escape device, effectively avoid mosquitoes being captured escape.
Independent power adapter, output voltage / current is more stable, more secure, more convenient retractable

Usage Method:
Put the product in the room or area which need killing mosquito.
Put the DC plug into the supporting DC socket, then inserted it into the 110V ~ / 60Hz 220V ~ / 50Hz outlet, which will begin to work.
Place the mosquito lamps in the 0.8-1.2 meters high from the ground in the interior region of the open air, while avoiding other light sources of interference.
When cleaning mosquito trap debris, firstly unplug the power adapter, and then unplug the DC plug on the mosquito trap.
Gently lift the mosquito killer, grip the mosquito storing box, rotate it toward the direction of marked with a lock (right), when hearing the "ka" sound, slowly remove the storage boxes of mosquitoes.
Pour the mosquito debris away and then cleaning the mosquito box with a small cleaning brush, try to avoid mosquito blocked storage boxes. Regular cleaning is helpful for the killing mosquito effect.
After cleaning it, align at the card slot clamping and the body of the mosquito storing box, rotate toward the direction of a lock marked in mosquito storing box, also heard the noise and confirmed wedge and then use it...
To prevent mosquito escape when power off, use preventing escape net; If need improve cleaning-up results, removing net can increase the speed of wind intake.

Notices:
When using mosquito trap, try to turn off the lights or weakened the light of area, to avoid the interference from other light (such as window light, fluorescent lights, TV, etc. ), effects the result of eradicating pest.
During using it, try to avoid the strong winds (such as electric fans, air conditioners, etc. ) blow the product directly. Using in an enclosed space can achieve the best results.
When the machine is working, do not watch the ultraviolet light source for a long time to aviod affect eyesight; Try to avoid ultraviolet light shining the skin directly at short range, so as not to cause the skin sensibility.
If any power adapter or mosquito, in order to avoid danger, be sure to ask
Professional person to repair or replace.
When not in use for a long time, unplug the power cord and put into
Sealed carton, and place on the damp, exposure and rain areas in order to increase product life.

Maintenance and repairs:
Often clean the mosquito wreckage in the mosquito trap, and clean it with
Water and brush carefully, to avoid clogging storage mosquito net and effect the killing insects results.
Please be strictly operate the machine in accordance with the instructions, in order to ensure the normal operation of the machine and achieve the best results, please use special accessories provided by the company(Light source, fan, power adapter).
