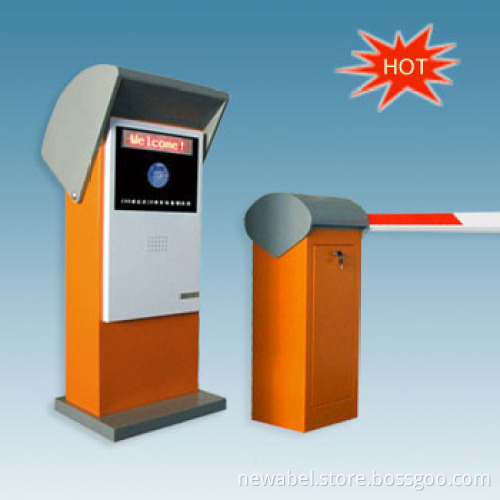

Auto Car Parking System (CHD-DX)

Performance Parameter

Dimension: L350mm x W300mm x H1000mm (Main body)
Barrier weight: 55 to 65kg
Arm type: Straight & fold & fence for choice
Arm length: From 1 to 6 meters
Operation life cycle:

3.5 million times (CHD-DM1)
5 million times (CHD-DM2)

Opening / closing time:

6s (CHD-DM1)
0.9~3s (CHD-DM2)

Working voltage: AC230V ± 15%
Working temperature: -30° C to 40° C (default)
Attractive in design, powder coated yellow/orange as standard

Function & feature

Left-hand or right-hand site configuration
100% continuous duty cycle rated
Pre-wired loop detector for falling protection and entry/exit control
Simple but effective structure to reduce mechanical failure and maintenance cost
Magnet sensing limit control device with high sensibility, reliable and accurate
Special device for open barrier manual in case power off
Advanced motor with thermal protection, automatically power off in case the temperature over 135º C
