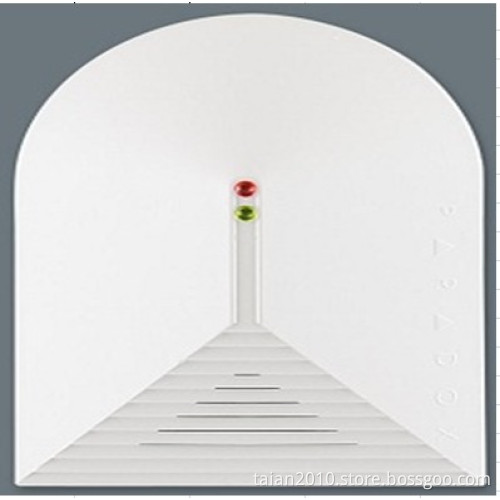

Wireless Glass Smash Break Detector/Sensor for Alarm System (TA-456)
  • Wireless Glass Smash Break Detector/Sensor for Alarm System (TA-456)
Wireless Glass Smash Break Detector/Sensor for Alarm System (TA-456)

Wireless Glass Smash Break Detector/Sensor for Alarm System (TA-456)

Get Latest Price
Payment Type:
T/T, Western Union, Paypal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T, Western Union, Paypal
Product Description
Product Description

Product Description

The Glassbreak detector TA-456 is designed to distinguish the particular sounds made when perimeter glass is broken, such as plate, laminated and tempered glass, from any other sounds. The complete signal received by the microphone is digitally filtered and analysed by various methods. The digital software uses the data from these methods to complete a thorough analysis of the entire signal to compare to its bank of alarm parameters. Signals originating from common events, such as breaking a glass cup or using a power tool, will not match glass trek's alarm parameters and will be rejected. The detector can also be used to monitor the sounds in the protected area though its audio output.

Features:
1. Frequency distribution
2. Frequency fluctuation assessment
3. Impact and shock wave analysis
4. Digital amplifier gain
5. Signal processing and false alarm elimination
6. Sensitivity settings
7. Alarm LED
8. Audio output
Name: Glass break detector/sensor for alarm system(TA-456)
Model: TA-456
Voltage: 9 to 16VDC
Detection area: 40ft*50ft(12m*15m)120°wide
Current: 70mA
Coverage: High:9m(30ft.),low:4.5m(15ft.)
Relay output: 150mA,26VDC,Form A(N.C.)Form C optional(N.C./N.O.)
Operating temperature: -20°C to +50°C
Microprocessor: 12/8bits
Mounting Ceilings or walls adjacent or opposite to the protected glass
Display: Red LED: flash:detects high frequency
Green LED:flash:analysis in progress
Effective for: Plate and tempered glass    40.6cm*61cm(16in.*24in.)or larger every standard thickness                                                                                                   0.32cm to 0.63cm(0.125in. To 0.25in.)
Tamper switch Laminated glass    71cm*71cm(28in.*18in.)or larger every standard thickness                                                     0.32cm to 0.63cm(0.125in. To 0.25in.)
Testing: High-frequencies:tessttrek(459)                                                infrasonic:physical demonstration
