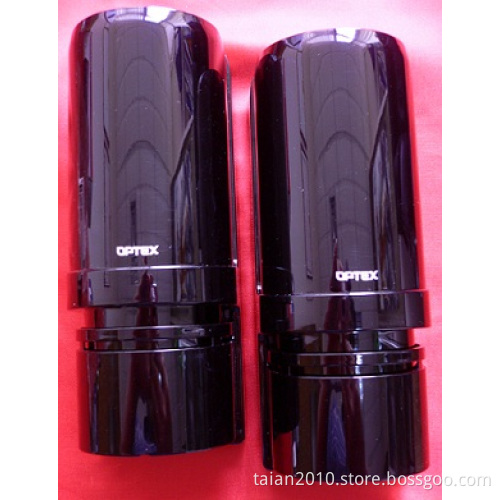

Ax-200plus, Alarm Beams Sensor

Lightning and surge protection
Rain, dust and insect protection
Frost and dew protection
High grade aspherical lens
Twin synchronized pulsed beam design for greater stability
99.5% beam blocking stability
A. G. C. Circuit
Adjustable beam interruption time
3 step LED indicator (ALPHA versions)
AX-100/200/260/330PLUS standard model
AX-100PLUS 60m Indoor 30m Outdoor
AX-200PLUS 120m Indoor 60m Outdoor
AX-260PLUS 160m Indoor 80m Outdoor
AX-330PLUS 200m Indoor 100m Outdoor


Interruption periodSelectable between 50, 100, 200, 350 and 500 msec.
Power supply10.5 - 30V DC
Current consumption
(transmitter + receiver)50mA (max. )
Alarm period 2 sec. (± 1) nominal
Alarm output Form C relay 28V DC 0.2A max.
Tamper switch N. C. Opens when cover is removed (Receiver only)
Operating temperature-25° C to +55° C
Environmental humidity 95% max.
Alignment angle ± 90° Horizontal, ± 10° Vertical
Mounting Wall and pole mounting
Weight (transmitter+receiver) 1250g
Dimensions (H x W x D)196mm x 78mm x 83mm
Weatherproof IP54
