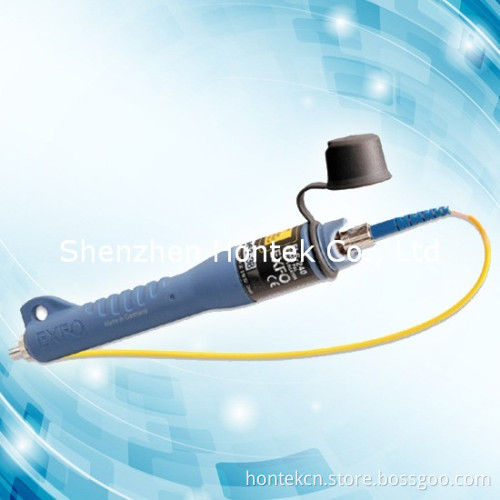

Exfo Visual Fault Locator Fls-241

FLS 240 FLS 241 EXFO Visual Fault Locator

Features and benefits:

1, bright red laser at 635 nm

2, pulsed and cw operation

3, 50 hours of operation (typical)

4, standard AAA alkaline batteries

5, rugged and weatherproof

6, 2.5 mm universal connector

Specifications:

Operation (Hz) 2 to 4

Wavelength (nm) 630 to 645

Emitter type laser

Power output (typical) (mw) 0.6

Distance range a (typical) (km ) 5

Operation mode pulsed and cw

General specifications

Power supply 2 AAA alkaline batteries

Laser class 2

Battery life b (h)

Flashing 50

Length 17.5 cm (6 7/8 in)

Maximum diameter 2.5 cm (1 in)

Weight without batteries 80 g (4.8 oz)

With batteries 120 g (6.3 oz)

Temperature operating — 10 ° C to 50 ° C (14 ° F to 122 ° F)

Storage — 30 ° C to 60 ° C (— 22 ° F to 140 ° F)

Standard accessories:

User guide, two AAA alkaline batteries, belt clip and certificate of compliance.
