Exfo Live Fiber Detector Fiber Detector (Lfd-200)

EXFO LIVE FIBER DETECTOR LFD-200

No need to open fiber for identification Hands-free operation via Hold button Three interchangeable adapter heads.
Extended range model: 23 to 50 dBm

ModelDescription:

LFD-201 Live fiber detector, traffic direction and tone detection

LFD-202 Live fiber detector, traffic direction and tone detection with power measurement range of 0 to 40 dBm

LFD-202E Live fiber detector, traffic direction and tone detection with power measurement range of +23 to 50 dBm


Pls contact: Lynn
Mobile: 086-18565752656




Simple Testing of Multiple Fiber Types

EXFO's LFD-200 is the only instrument of its kind on the market that comes with a choice of three built-in, interchangeable adapter heads, making it an all-in-one solution for live fiber detection. The handle's
Storage compartment holds the extra adapter heads for simple conversion and easy testing of various fiber types.

The LFD-200 also features a unique Hold button that enables hands-free operation. Just slide the button up and over to lock it in place. You are now free to operate your setup.

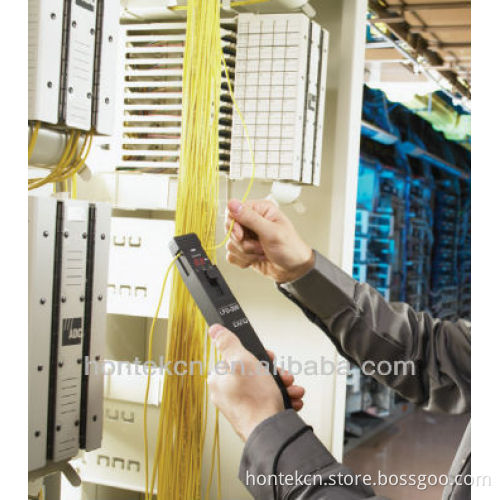

Simply clamp the LFD-200 onto a fiber, listen for a beep indicating the presence of traffic, then view a complete status reporton the multifunction LED display:

Signal presence or absence (live or dark fiber)
Signal type (customer traffic, continuous or modulated test signal at 270 Hz, 1 kHz or 2 kHz)
Signal direction
Core power within 2 dB (typical)
Complete Diagnosis. Fast.
