3.6V Rechargeble Lithium Button Cell LIR1632

Get Latest Price

Payment Type:: L/C, T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union, Paypal

Product Description

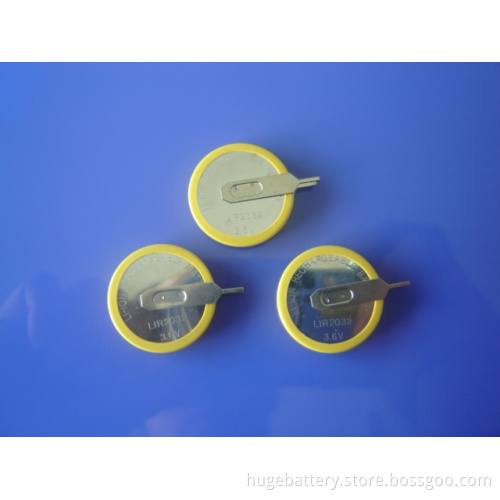

LIR 2032 button cell battery(with pins)
Nominal Voltage: 3.6 V
Nominal Capacity: 45 mAh
Average Weight: 3.1± 0.1 g
Dimensions: Diameter 20mm Height 3.2mm
Application: Electronic Watches / clocks, Small-size memory packs, Pocket calculators, Date pack for cameras

Kingbolai is a professional battery manufacturer which was founded in 1993 in China. ISO, RoHS, CE APPROVAL!
Our factory with FUJI ( Japan ) and Hibar ( Canada ) automatic production line occupies 15, 500 squre meters and owns 700 skilled workforces including 30 technical engineers.

3.6V Rechargeable Button Cell Electrical Property
Model	Nominal	Capacity		Max	Diimcnsion(mm)		Weight	Internal
	Voltage	(mah)		Discharge			Weight	resistance
				Current	Dianmeter	Thickness	Approx
	(V)	Nominal	High	(mA)	Dianmeter	Thickness	Approx
		Capacity	Capacity	(mA)			(g)	mΩ
LIR1130	3.6	7	8	0.5CmA	11.0 -0.2	3.0 +0.2	0.8
LIR1220	3.6	7	8	0.5CmA	12.5 -0.2	2.0 +0.2	0.8
LIR1620	3.6	15	17	0.5CmA	16 -0.2	2.0 +0.2	1.2
LIR1632	3.6	25	27	0.5CmA	16 -0.2	3.2 +0.2	1.7
LIR2016	3.6	17	19	1CmA	20 -0.2	1.8 +0.2	1.7
LIR2025	3.6	30	35	1CmA	20 -0.2	2.5 +0.2	2.3
LIR2032	3.6	40	45	1CmA	20 -0.2	3.2 +0.3	2.8	≤600
LIR2430	3.6	60	65	1CmA	24.5 -0.2	3.0 +0.3	3.8	≤500
LIR2440	3.6	80	90	1CmA	24.5 -0.2	4.4 +0.3	4.4	≤400
LIR2450	3.6	110	120	1CmA	24.5 -0.2	5.0 +0.3	5.2	≤400
LIR2466	3.6	140	150	1CmA	24.5 -0.2	6.6 +0.3	6.5	≤400
LIR3032	3.6	110	120	1CmA	30 -0.2	3.2 +0.3	6.2	≤400
LIR3048	3.6	170	180	1CmA	30 -0.2	4.8 +0.3	7.3	≤400
