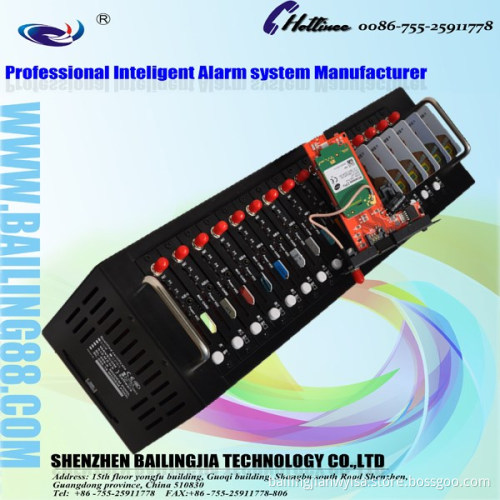

Wavecom GSM Modem with USB Interface 8 Ports GSM Modem Pool

Wavecom GSM modem with USB interface 8 ports GSM modem pool

Specifications
1. Based on Wavecom
2. Open AT
3. Bulk SMS&MMS
4. Fatory Produce, Lower Price

Wavecom GSM modem with USB interface, 8ports GSM modem


Our 8 ports GSM Modem is made of many modules.

Module NO.
Function
Frequency(MHz)
Most Popular Wavecom Modules
Q2303
SMS(>600PCS/hour per port)
900/1800
Q2403
SMS, MMS
900/1800
Q2406
SMS, MMS, TCP Protocol
900/1800
Q24plus
SMS, MMS, TCP Protocol
850/900/1800/1900
TC35I
SMS, MMS
900/1800
TC37I
SMS, MMS
900/1800MHz

Key Feature:
1. Just like 8 single-channel equipments work at the same time
2. Insert 8 SIM cards(big or small
3. Connection with the computer through a data line be integrated with Serial 8
4. Each channel with separate power switch
5. Each individual module be demolished
6. Industrial chassis, elegant shell
7. GSM frequency: 900/1800 MHz
8.8 SIM card(big/small) slots
9. Wireless access to interne
10. Comply with GSM phase2 standard
11. Dual-band/Quad-band(optional)
12. RS-232/USB interface(optional)
13.8 SIM Card supported (Big/Small)
14. Optional data, voice function
15. Send and receive English SMS in bulk

Basic Feature:

-Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
-Baud Rate: 300-115200 bits / s
-Automatic baud rate: From 2400 to 19200 bits / s
-Fax support three
-Switched voice and fax
-V. 42, V. 42bis
-GPRS compatible
-WAP compatible
-SMA Antenna Interface
-SIM Card Outlet
-Power connector
-AT command control ( GSM 07.07 and 07.05)

Application:

-Large shopping malls, supermarkets
-Professional market, large wholesalers
-Large hotels, large-scale entertainment
-Large agencies
-Transport, logistics industry
-Large enterprises, and institutions
-Large hospitals, large bookstore
-Newspaper, television and radio stations
-Oil Company ( other chain business model)
-Government agencies or large township

Hardware Feature:

-Support dual-band GSM: 900/ 1800 MHz
-Meet the ETSI GSM 2 + standards
-Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
-5 -24 VDC power supply (which be directly connected to the nickel- metal hydride or lithium batteries)
-Operating Temperature: -20 ° C - + 55 ° C
-Storage temperature: -25 ° C - + 70 ° C
-Size: Standard 1U chassis

Supported Operating Systems:
Windows 7/ Windows Vista/ Windows XP/ Windows Server 2003/ Windows 2000/
Windows 98SE/ CE/Linux 2.40/ MAC 9.8X



Packing List

1*8 ports mode pool
1*Charger
8*Antenna
1*USB Cable
1*CD

Measurement:


Size: 25*15*12cm
Net Weight: 2.5kg
Gross Weight: 3.5kg

Any needs or doubts please contact me freely! !
