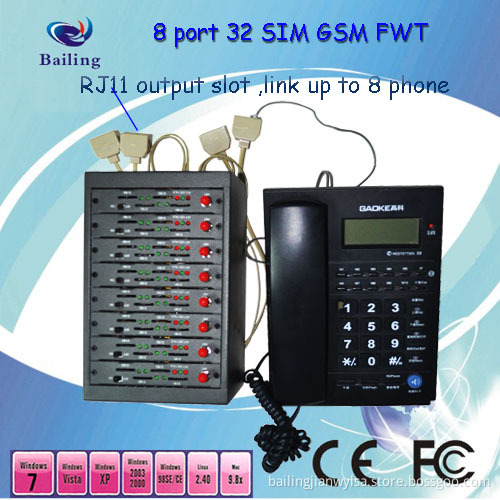

8 Port 32 Sims GSM Fixed Wireless Terminal

8 port VoIP GSM FWT support 32 SIM card auto switch IMEI changeable

Specifications
1. GSM850/900/1800/1900MHz Quadband
2. Caller ID display
3. IMEI changeable
4. VoIP +bulk SMS
5. USB interface
6. SIM romation(Message switching)
7. Bult-in software
8. Can connect getway

Features:
1) It is a 8 channels GSM Gateway that has 2 ports FXS interfaces;
2) Each port has 4 SIM cards, 4 SIM cards can rotate by using time or call out times
3) It can connect with ordinary telephone set, PBX, VoIP Gateway, Billing meter etc.;
4) It is compatible with Asterisk
5) Dialing tone frequency: 450Hz;
6) Employ Industrial module M10(850/900/1800/1900MHz), M12(900/1800MHz), SIM540(850/900/1800/1900MHz), SIM500(900/1800MHz), to make;
7) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;
8) Can adjust voice volume by setting up from telephone set;
9) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;
16) IMEI Change (optional)

Technical Specifications
Air interface standard: GSM850/1900MHz, 900/1, 800MHz phase 2+ full band
Frequency ranges:

8 port GSM FWT Technique parameters
1) Working frequency:

Transmit band (Tx)
Receive band (Rx)
GSM 850
824 to 849 MHz
869 to 894 MHz
E-GSM 900
880 to 915 MHz
925 to 960 MHz
DCS 1800
1710 to 1785 MHz
1805 to 1880 MHz
PCS 1900
1850 to 1910 MHz
1930 to 1990 MHz

Phone interface: Supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5dB
Sensitivity: <-104dBm
Transmitting power<3W
AC-Adapter interface: INPUT: AC 110~240V
OUTPUT: 5V 7A
AC-Power type: EU, US, AU, British can be optional

Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature: -20C~70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise: <60dB
Transmitting Power: 2W
Sensitivity: <-104dBm
Antenna Amplifying: >1.5dB
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

Checking Package:
BL-8832GU GSM 8 PORTS FWT: 1PCS;
Power Supply Cable: 1PCS,
GSM Antenna with 3m cable: 8PCS,
RJ-45 Cable: 2PCS
Product dimension: L250x W150 x H120mm
Gift box dimension: L300x W180 x H200mm
G. W: 3.5kg.
