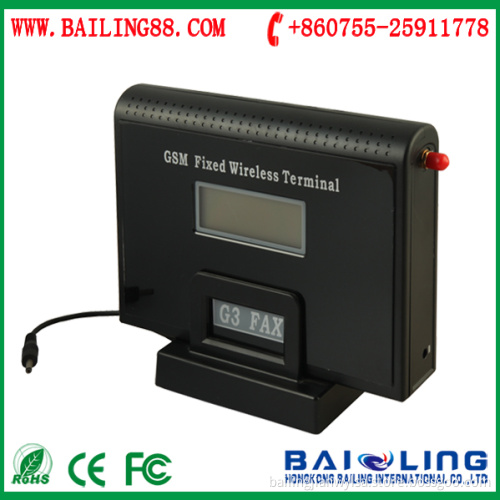

Multimode Operation Quad-Band Edge/GPRS/GSM Wireless Fax Terminal

Multimode operation Quad-band EDGE/GPRS/GSM wireless fax terminal


Features:

1. Based on W-CDMA
2. Can connect to PBX.
4. Support connect with Internet
5. Can lock SIM card
6. Support Caller ID
7. Making & answering calls after connecting to telephone set.
8.2RJ-11 ports can support connect with extension Technique Parameters:

Technique Parameters:

1. Multimode operation HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM
2. Triple-band HSPA/UMTS 850/1900/2100 MHz
3. Quad-band EDGE/GPRS/GSM 850/900/1800/1900 MHz
4. HSUPA uplink up to 2.0 Mbps
5. HSDPA downlink up to 7.2 Mbps
6. WCDMA (UMTS) uplink data rate up to 384 kbps
7. EDGE data up to 237 Kbps DL and 118Kbps UL, 3GPP Release4, class 12
8. GPRS data up to 85.6 Kbps DL and 42.8 Kbps UL
9. Power Supply: DC5 V
10. Output Power:
Class 3 for UMTS/HSDPA/HSUPA
Class 4 for GSM 900
Class 1 for GSM 1800
Class E2 for EDGE 900/1800
11. USB: USB 2.0 Full Speed
12. Antenna Gain: >1.5dBm
13. Environmental
Operating Temperature: -10 ~ +55
Storage Temperature: -40 ~ +80
14. RJ-11 phone interface:
Dialing tone frequency 450Hz
On hook voltage 45V
Off hook current 30mA/41mA
