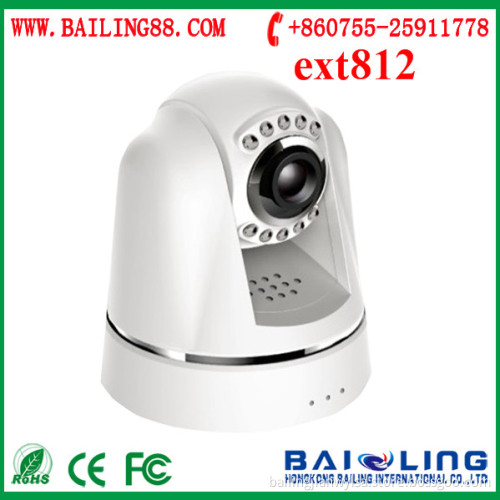

3G Anti Thief Alarm System for Home/Business Use
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description
Panel Introduction:
1. DC12V power adapter interface.
2. Charge lamp: The red light means the Battery Charging, the red light turn off when the battery full.
3. The Host indicator lamp: Green light is host status lamp, the green light flashing per 3s, the green light always on.
4. The host power switch: The host power switch
5. Arm/Disarm indicator lamp: Red light on means arm status, the Wireless Accessories is on standby mode when Arm, The host will alarm when triggering. Red light off means disarm status, the host won't alarm when triggering.
6.4P Phoenix terminal: Used to connect the wired sensors.
7. USIM card slot.
8. Siren interface: External Siren interface.
9. SD card slot: Memory card slot, used to Storage alarm MMS, Video.
Product Main Features:
1. Mobile phone remote video monitoring, 30, 0000 pixel camera, With infrared night vision function
2. With PTZ, Pan 0-270 degree and Tilt 0-90 degree rotation
3. With 1200 mah backup battery to ensure the system continue to work when AC power off;
4. Remote control the camera to arm/disarm/turn on siren/turn off siren/2-way talking/digital zoom etc during 3G video call.
5. Active alarm function: Can work with 433mhz alarm accessories, PIR sensor, smoke sensor, etc, 5X Digital Zoom function to make you see clear image on your 3G phone.; Auto dial 5 group phone numbers presorted, send SMS/MMS alert after system triggered
6. Setup by SMS, Dial-in/SMS to remote control the camera to watch monitoring video via 3Gphone
7. SMS notification if any sensor is triggered
8. Security and reliability, End-to-end video transmission is better for protect user's privacy
9. Video mode: Alarm video, video telephone.
10.3 wired zones ABC and 50 wireless zones.
11. The user permission function, Can be set up 5 groups access permission.
12. External 4G TF card, 4000 photos Can be stored.
13. Conform to CE, ROSH, FCC international certification standards
Technical parameters:
GSM frequency: 850/900/1800/1900MHZ
3G WCDMA HSUPA 850, 900, 1800, 1900, 2100apply to worldwide.
RF frequency(315M/433M optional)Remote distance: 50-200 meters(without obstacles)
Alarm response time≤ 8S(GSM in normality)
88 wireless zones for connecting wireless sensors
Operating temperature: -45~+60° C Humidity: ≤ 95%
Barometric pressure 86~106kpa ambient noise ≤ 60dB
Standby current: 5mA
Alarm current: <500mA
Standby power: < 0.3W
Power adapter: : AC100- 240V 50Hz/60Hz.
DC output: : DC12V / 2A
Backup battery: DC7.4V/1200mA
Standby battery working hours≥ 48hours
Dimension: 10.5cm*11cm*13cm
Arm time delay 5~99s
Static current <80mA
Alarm current <400mA
Power input 12V, 1200mAh
Compatible with GSM/WCDMA
Video parameters adjustment, intensity control, image resizing
Built-in microphone & speaker for 2-way talking
Memory Storage SD card
Pan(0-270) rotation
Tilt(0-90) rotation
1. DC12V power adapter interface.
2. Charge lamp: The red light means the Battery Charging, the red light turn off when the battery full.
3. The Host indicator lamp: Green light is host status lamp, the green light flashing per 3s, the green light always on.
4. The host power switch: The host power switch
5. Arm/Disarm indicator lamp: Red light on means arm status, the Wireless Accessories is on standby mode when Arm, The host will alarm when triggering. Red light off means disarm status, the host won't alarm when triggering.
6.4P Phoenix terminal: Used to connect the wired sensors.
7. USIM card slot.
8. Siren interface: External Siren interface.
9. SD card slot: Memory card slot, used to Storage alarm MMS, Video.
Product Main Features:
1. Mobile phone remote video monitoring, 30, 0000 pixel camera, With infrared night vision function
2. With PTZ, Pan 0-270 degree and Tilt 0-90 degree rotation
3. With 1200 mah backup battery to ensure the system continue to work when AC power off;
4. Remote control the camera to arm/disarm/turn on siren/turn off siren/2-way talking/digital zoom etc during 3G video call.
5. Active alarm function: Can work with 433mhz alarm accessories, PIR sensor, smoke sensor, etc, 5X Digital Zoom function to make you see clear image on your 3G phone.; Auto dial 5 group phone numbers presorted, send SMS/MMS alert after system triggered
6. Setup by SMS, Dial-in/SMS to remote control the camera to watch monitoring video via 3Gphone
7. SMS notification if any sensor is triggered
8. Security and reliability, End-to-end video transmission is better for protect user's privacy
9. Video mode: Alarm video, video telephone.
10.3 wired zones ABC and 50 wireless zones.
11. The user permission function, Can be set up 5 groups access permission.
12. External 4G TF card, 4000 photos Can be stored.
13. Conform to CE, ROSH, FCC international certification standards
Technical parameters:
GSM frequency: 850/900/1800/1900MHZ
3G WCDMA HSUPA 850, 900, 1800, 1900, 2100apply to worldwide.
RF frequency(315M/433M optional)Remote distance: 50-200 meters(without obstacles)
Alarm response time≤ 8S(GSM in normality)
88 wireless zones for connecting wireless sensors
Operating temperature: -45~+60° C Humidity: ≤ 95%
Barometric pressure 86~106kpa ambient noise ≤ 60dB
Standby current: 5mA
Alarm current: <500mA
Standby power: < 0.3W
Power adapter: : AC100- 240V 50Hz/60Hz.
DC output: : DC12V / 2A
Backup battery: DC7.4V/1200mA
Standby battery working hours≥ 48hours
Dimension: 10.5cm*11cm*13cm
Arm time delay 5~99s
Static current <80mA
Alarm current <400mA
Power input 12V, 1200mAh
Compatible with GSM/WCDMA
Video parameters adjustment, intensity control, image resizing
Built-in microphone & speaker for 2-way talking
Memory Storage SD card
Pan(0-270) rotation
Tilt(0-90) rotation
