Intelligent GSM Alarm System Bl5000

Intelligent GSM Alarm System BL5000

Product Description

8 wired guarding zones for connecting wired sensors, 1 x relay outputs, Can control home appliances remotely through the relay output.
1.50 Wireless guarding zones, wireless alarm sensors inputs(315MHZ or 433MHZ)
2. Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal.
3. Arm/disarm and program the system by control keyboard on the mainframe & phone & SMS & Remote controller
4. Arm/disarm by controlSMS
5. SMS of each zone (8 wired zones, 50 wireless zones) can be edited independently
6. SMS 5 phones automatically while alarming
7. Call 5 phones automatically while alarming and drive wiretap, can clearly hear the voice on the scene.

8. Record function: Maximum recording time: 1 minute
9. Voice function: Support play the user record voice.
10. Support Mic and interphone.
11. Prompt for whole operation guidance, automatic prompt for host status and alarm by SMS
12. Modify zone content and inquire status of alarm host by SMS demand.
13. With magnetic Antenna with strong signal
14. With standby rechargeable battery. The host automatically stores system status, while its power is off.
15. Adopts wireless signal transmission, no need to connect to wire and easy for installation.

16. Tamper device: Arming while the control panel removing or shaking.
17. It can connect with alarm center, which is made up by GSM alarm module, alarm center software and computer.
Technical Parameters:
1. GSM frequency: 850/900/1800/1900MHZ
2. Working frequency between detector and alarm host(315M/433M optional) Wireless distance: 100-200m(without obstacles)
3. Alarm response time≤ 8S(GSM in normality)
4.50 Wireless guarding zones;
5. Working conditions Operating temperature: -45~+60° C Humidity: ≤ 95%
6. Standby current: 5mA
7. Alarm current: <500mA
8. Standby power: < 0.3W
9. Standby power consumption: 0.9W
10. Power adpater: : AC100- 240V 50Hz/60Hz.
11. DC output: DC12V / 2A
Backup battery: DC7.4V/1200mA
12. Standby battery working hours≥ 48hours
13. Dimension: 188mm(Long)× 120mm(Wide)× 28mm(High)
14. Gross weight: 1.5Kg
Net weight: 0.5Kg
Standard configuration:
1 X BL— 5000 GGSM control panel

1 X wireless digital keypad

2 X Wireless Remote controllers

1 X Mini siren with 110DB sounds

1 X Power adapter

1 X English user manual
1 X Brand new & neutral package box
Applications:
Make it widely applied in workstation, shops, super market, Community management, government entity, bank, security company, Local police station and so on for cable telephone network to protection can't get to the place. Them can protect the safety of user and take care of property.

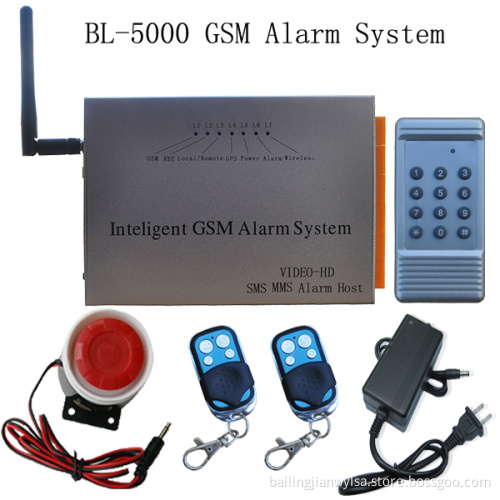

The Picture of GSM Alarm System:
