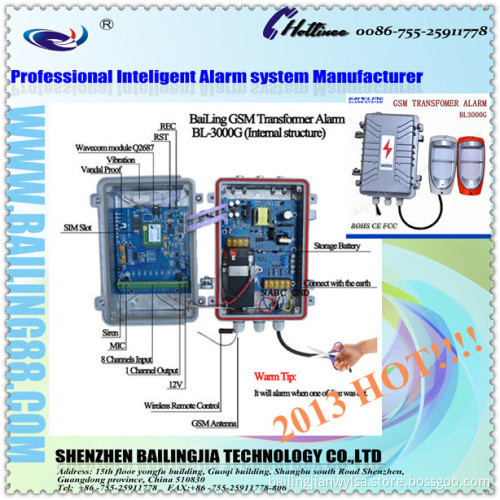

GSM Transformer Cable Industrial Power Alarm Systems (BL-3000G)

BL-3000G GSM transformer alarm systems by Mina

GSM/GPRS data module for industrial applications

Features:
Quadband GSM 850/900/1800/1900 MHz
GPRS multi-slot class 10 / Station class B
TCP/IP stack access via AT commands
SIM Application Tool Kit
Internet Services: TCP, UDP, HTTP, FTP, SMTP, POP3
Supply voltage range: 8...30 V
Operation temperatur: -20° C to +55° C
Extended temperature range: -40° C to -20° C and +55° C und +75° C
Dimensions: 65 X 74 X 33 mm
Weight: Approx. 110 g
GPRS: Max. 86 kbps (DL & UL), Mobile station class B, PBCCH support, Coding schemes CS 1-4
Data: CSD up to 14, 4 kbps/USSD/Non transparent mode/V. 110
Voice: Half rate (HR) / Full rate (FR) / Enhanced full rate (EFR) Adaptive multi rate (AMR), Basic hands-free operation, Echo cancellation, Noise reduction
SMS: Point-to-point MO and MT / SMS cell broadcast / Text- and PDU-mode
Fax: Group 3, Class 2
Interfaces: Power supply, Handset, SIM Card Reader, FME antenna connector (male), RS232 (V. 24/V. 28 on sub-D)Main feature
With 6 wired zones for connecting wired sensors
SMS 5 phones automatically while alarming and drive wiretap.
Call 5 phones automatically while alarming and drive wiretap, Can clearly hear the voice.
. Auto-dial 1 preset phone numbers of Alarm Center
Alarm panel with LCD display & keypad, easy to operate.
SMS alert & auto-dial alert when AC Power outage, AC power recovered
With standby rechargeable battery. The host automatically stores system status, while its power is off.
With wired MIC interface, switching the sound off and siren
Talkback Function: Can speak with field person.
Arm/disarm and program the system by control keyboard on the mainframe & phone & SMS & Remote controller
Timing arm/disarm function.
Record function: Maximum recording time: 20S
Voice function: Support play the user record voice.
Built-in high standard Internal Antenna with strong signal
Original host operating system.
Chinese/English switch supported
With RoHS/CE/FCC certifications, conform to 3C Safety Standard and GB12663-2001 government standard

Technical parameters
GSM frequency: 850/900/1800/1900MHz
Working frequency between detector and alarm host(315M/433M optional) Wireless distance: 100-200m(without obstacles)
Alarm response time≤ 8S(GSM in normality)
99 Wireless guarding zones;
Working conditions Operating temperature: -45~+60 C Humidity: ≤ 95%
Standby current: 5mA
Alarm current: <500mA
Standby power: < 0.3W
Standby power consumption: 0.9W
Power adpater: : AC100- 240V 50Hz/60Hz.
DC output: DC12V / 2A
Backup battery: DC7.4V/1200mA
Standby battery working hours≥ 48hours
Dimension: 188mm(Long)× 120mm(Wide)× 28mm(High)
Gross weight: 1.5Kg Net weight: 0.5Kg

************************************************************************************
Please send me inquiry if you are interested in buying our products. Thanks. *
************************************************************************************
