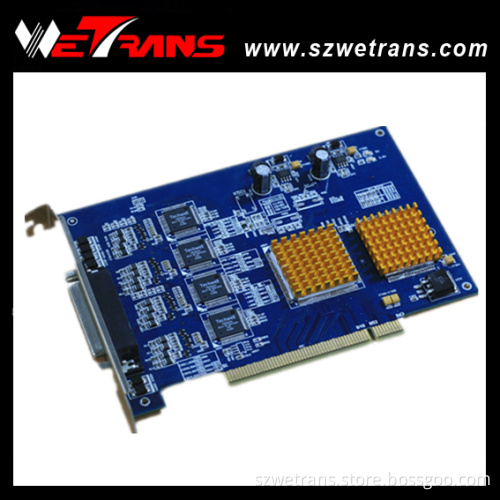

Real Time Display H. 264 Compression DVR Card (TD-2308)

Real Time Display 8CH Hardware H. 264 Compression DVR Card

1.8CH hardware H. 264 compression DVR card.

2. Real time display - 200fps (PAL) and 240fps (NTSC).

3. Recording resolution CIF.

4. Supporting max. 25CH in one server.

4. Hybrid DVR card compatible with analog CCTV camera and IP Camera.

5. Run with advanced edition Intelligent video analysis software.

6. Supporting face detection, missing object detection, suspicious object detection, motion detection,

Object counting, guard-line crossing detection and retrograde detection.

7. Various recording model- continuous recording, manual recording, schedule recording, motion

Detection recording and alarm recording.

8. Powerful playback supporting simultaneous multiple-CH playback, digital zoom-in and zoom-out white

Playback.

9. Support remote display, recording, playback and PTZ control via IE or client software.

10. Easy network connection - only one client to get server address for remote surveillance.

11. Operation System Windows XP, Windows Vista, Windows 7, Windows server 2003 and 2008.

12. DVR Card Has lightning protection circuits, and can withstand the impact of lightning and strong

Currents.

Brief Introduction of Intelligent Video Analysis

Face Detection

Using advanced face detection algorithm, our system can detect human faces in real time, and store the

Captured face images into database, facilitate the video indexing and search task without playing back the

Whole recorded video sequence; Meantime, the face detection could trigger other alarm devices such as

PTZ, siren, Email system, GSM/GPRS modem or other alarm devices and action.

Abandoned Object Detection

The video signals are captured by the camera and analyzed by our intelligent analysis software. When

Some abandoned or unattended object(unattended luggage, explosives, or etc. ) stay in the scene for a

Certain time, the system will automatically detect them and trigger alarm signal to alert the personnel on

Duty to take action.

Missing Object Detection

The video signals are captured by the camera and analyzed by our intelligent video analysis software.

When targets monitored in the scene have been removed, replaced, or maliciously shaded, our system

Will trigger alarm signal and take corresponding action. This could help our customer to ensure and

Protect the property safety and integrity.

Object counting

Using advanced video analytics algorithm, the moving object in the scene of the captured video can be

Detected and tracked in real time. The traffic statistics can be collected and updated in real time based on

The tracking result. These statistics information could be important in early warning systems of traffic

Control, crowdedness estimation, etc. And also could be used to improve the efficiency of our customer's

Business operation.

Motion Detection

Motion detection can be used to alert users of unauthorized entry. The software can trigger alarm such as

Zoom the image, auto tracking, send SMS or email and buzzer, etc

Retrograde detection

In the scene of the video camera, user can draw multiple sensitive area and assign legal direction for

Each of them, when the trajectory of the detected object moving inside the sensitive region deviates form

The legal direction to a certain degree, the system will trigger the configured alarm signal and take the

User specified action.

Guard line crossing detection

In the scene of the video camera, user can arbitrarily draw multiple sensitive area or guard lines, when

There are moving objects(people, vehicles or boat)move into the sensitive area or cross the guard line

Along the forbidden direction, the system will automatically track moving objects, trigger alarm signal and

Take the user specified action.
