Product Description

Air cooled screw water chiller:
Cooling only and heat pump: 50 to 60Hz
Cooling capacity: 40 to 360kW
Heating capacity: 42 to 400kW
Climate: T1 to T3
Refrigerant: R22, R410A
Modular design
Fully-automatic control: Operation and management of this unit are controlled by microcomputer system
Intelligent defrosting: Each modular is separate to others at inner cooling system and controls operation of system independently
Convenient operation: Each unit is strictly detected before selling, refrigerant, and cooling oil are injected, protective parameters are set.

Water cooled water chiller similar types:
Water cooled chiller, industrial water cooled chiller, aquarium water chiller, industrial water chiller, chiller, laser water chiller, water cooling chiller, industrial water screw chiller, industrial chiller, water chiller systems, water cooled chiller, water cooling industry water chiller, Water cooled industrial chiller, screw water chiller, water cooled screw water chiller, water cooled screw type water chillers, screw industrial water chiller, screw type water cooled chiller, cooled water chiller, screw type chiller,
Air cooled water chiller similar types:
Air chiller, air cooled water chiller, air cooled industrial water chiller, air cooled scroll chiller, air cooled scroll chiller, air cooled mini chiller, air conditioning chiller, industry water chiller for laser, laser water chiller, air cooled screw water chiller.

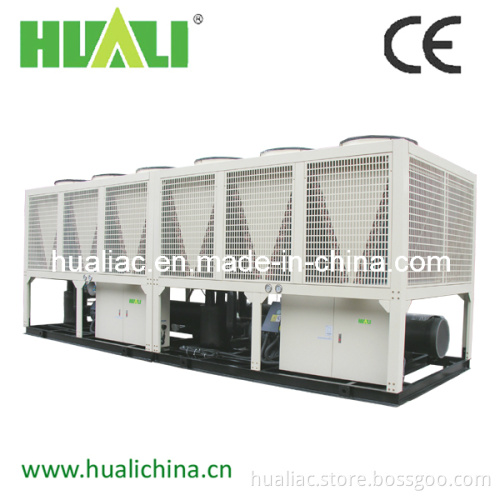

CE Refrigerator Water Chiller and Air Cooler Heat Pump Chiller

Air cooled Water Chiller (with Heat Recovery)
Model HLWA~			110SM	160SM	210SM	230SM	270SM	310SM	340SM
Model HLWA~			110SHM	160SHM	210SHM	230SHM	370SHM	310SHM	340SHM
Rated Cooling Capacity		X 1000Kcal/h	86.8	126.4	168.5	199.5	230.4	251.9	271.7
Rated Cooling Capacity		KW	101	147	196	232	268	293	316
Comp. lnput Power×Qty (KW)			34.6×1	48.2×1	63.8×1	70.5×1	82.4×1	90.2×1	98.9×1
Refrigerant			R407C
Power Supply			380V/ 3ph/ 50Hz
Safety Protection			Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection.
Number of Refrigeration Circuit			1
Capacity Control (%)			0, 50, 75, 100
Refrigerant Charge (Kg)			30	42	56	68	78	84	93
Condenser			Ripple Aluminum Fins Around Copper Pipe
Evaporator	Dia.of Pipe (inch)		2-1/2"	3"	3"	3"	4"	4"	4"
	Water Side Max Pressure (MPa)		1
	Chilled Water Flow(m 3 /h)		17.4	25.3	33.7	39.9	46.1	50.4	54.3
	Water Pressure drop (kPa)		28	33	48	55	61	64	66
Axial Fan	Air Flow×1000m 3 /h		56.8	80.4	113.6	115.2	115.2	160.8	160.8
Axial Fan	Power×Qty (KW)		1.2×4	2.0×4	1.2×8	1.2×8	1.2×8	2.0×8	2.0×8
Running Noise dB(A)			68	68	68	68	72	72	72
Total Weight (Kg)			1160	1730	2590	2670	2750	2930	3160
Running Weight(Kg)			1270	1920	2810	2900	3020	3240	3450
