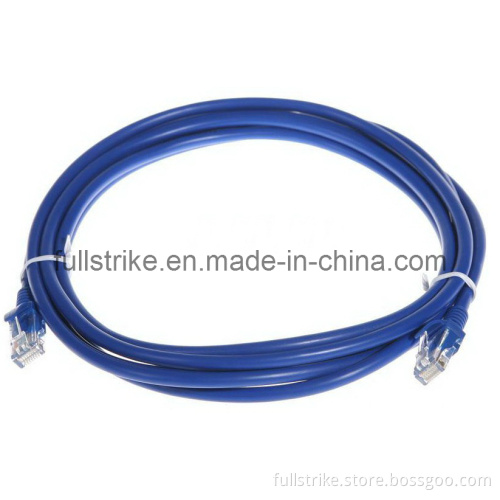

Cat5e Networking Cable, RJ45 Plug to Plug

Cat5e Network Patch Cords Cable RJ45 Plug to Plug


Pecifications
Cat5e UTP stranded cable
1. CE/ROSH/CCC certification
2. PVC/LSZH Jacket
3. CU/CCA/CCS
4. Competive price and high quality


High speed network cable rj45 cat5e ethernet patch cable

Specifications:
Conductors:
Patch cable: 7 x 32AWG (7/0.2mm) stranded coppers
Path cord plug: Unshielded RJ45 plug
Boot: FR PVC high-injection
Nominal OD: 5.5mm
Insulation: Polyolefin
OEM orders are welcomed
Conductor: Copper/CCA/CCS optional
AWG: 7 x 34 (7/0.16)/7 x 33 (7/0.18)/7 x 32AWG (7/0.2mm)
Plug: 8P8C
Insulation: PE
Jacket: PVC/LSZH
Color codes: Length: 0.5, 1, 2, 3 and 5m (special length accepted by order)
Pair 1: White/blue and blue
Pair 2: White/orange and orange
Pair 3: White/green and green
Pair 4: White/brown and brown

LAN cable standard compliance:
Standard: Category 5 TIA/EIA-568-B-2.1, draft 9
With CE standards and the RoHS Directive-compliant
Applications:
Improved attenuation provides cleaner data and video transmissions
For 1000 base-T, 100 base-TX, 155-Mbps ATM and other high-speed applications
Designed for: Network adapters, hubs, switches, routers, DSL/cable modems and patch panels
Snag-less patch cables can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video
Constructed with quality cable and a shortened body plug
The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief
Snag-less patch cables are available in a various colors to easily color-code network installation
