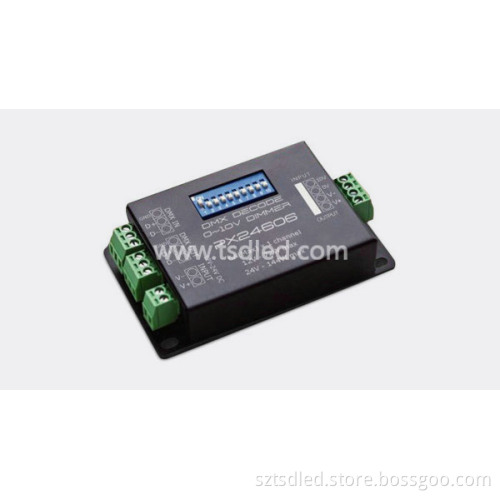

High Power DMX512 Decoder&Driver

SUMMARIZE of DMX512 Decoder, LED Decoder
Thank you for using PX series DMX512 decoder. With advanced micro-computer control
Technology, PX series convert the widely used DMX512/1990 signal to analog signal.
Support DMX512 dimming function (prior) and 0~10V analog signal dimmer.

FEATHERS of DMX Decoder, LED Controller
1. Meets DMX512/1990
2.1 output CH., can drive 3A
3. With control system, can express perfect effect
4. Can set the DMX512 addess freely
5. Modularizing, can be combined with LED module neatly

Specification of DMX512 Driver
Decode CH.: 1
Input Signal: DMX-512/1990 digital signal
Output Signal: 0~24V, can drive 3A
Power Supply: DC12~24V
Power Dis.: < 1W
Max. Power Output: 36W(12V)/72W(24V)
Operating Temp.: -20~70º C
Size: L86(mm)*W51(mm)*H17.8(mm)
Weight: 110g

Typlcal Applications:
Connecting of DMX512 Signal
*The wire for DMX512 signal is STP, the DMX512 signal has positive and negative signal.
Pay attention to the polarity while connecting. Connect the positive signal, negative signal and GND to the corresponding connector of PX24606.

Connection with DMX512 Dimmer
*DMX512 signal will be choosen prior to 0~10V analoge signal. When both DMX512 and 0~10V analog signal arrives in PX24606, the controller will choose DMX512 signal automatically.

HOW TO ASSEMBLE A SYSTEM
* Please read the below connection for reference if you want to assemble a DMX512 system
