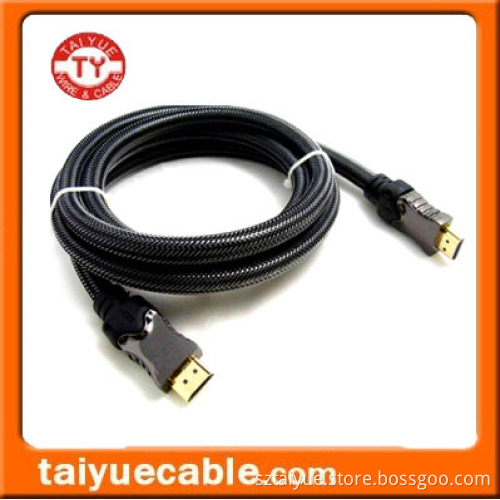

Mini HDMI Cable

Mini HDMI cable
Product Description
HQ G. P HDMI cable, Double-injected Plugs cover,
Various Nylon Braiding cable cover,
HDMI1.3, CAT2 200Hz.

Deatailed product description

Electrical:
100% open and short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10 Mega Ohms min
Contact Resistance:
Cable<3m: 2.0 Ohms Max
Cable3~8m: 3.0 Ohms Max
Cable8~15m: 5.0 Ohms Max
Working Temperature: -25° ~+85°

Mechanical:
Insertion force: 44.1N Max
Withdraw force: 9.8N Min
Application:
PDPTV, LCD TV, HDTV, RPTV, DVD, STB etc.
Connector Material:
Contact: Copper alloy
Shell: Assembled Zn allpy Shell
Plating:
Contact: 30U, 15U, 3-5U, G/F
Shell: G/F OR Nickel

Cable:
HDMI Cable(1Pair+Drain+AL/Mylar)*4+1P+5C+AL/Mylar+Braid Jacket
Size of conductor: 28AWG, 30AWG
Material of conductor: TC, BC, SC or elso
Material of braid: TC, aluminum magnesium alloy or elso
Material of jacket: PVC or elso
Outer diameter of cable: Customer definition
Over mold: Dual color
Length of cable assembly: Customer definition(unit: Mm)
Ferrite core: Optional
Mesh sleeve: Optional
