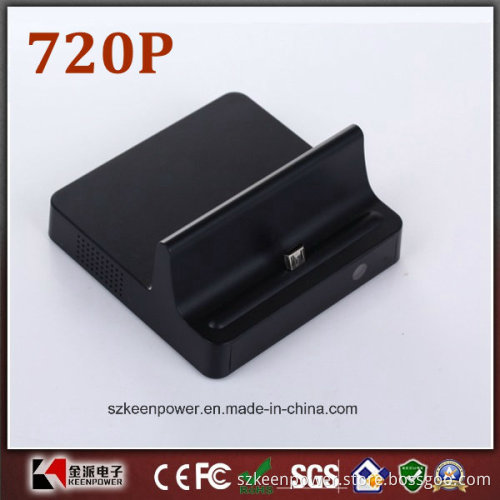

Phone Charging Dock Camera with Remote Control

Using DVR (Three different recording modes)
1) Continuous Recording( video and audio)
2) Audio only
3) Motion detection (video and audio)


Plug DVR to a wall outlet to finish the time setting firstly
Power On
Keep pressing the power button for approx 1~2 seconds until the red light comes on.
Video Recording
While the red light on (standby mode), press the video button once, the red light will
Flash twice and go off.
Save Video
Press the video button one time shortly while recording, the red light will come on
Again, it's now in standby mode and video was saved
Motion detection Mode
In standby mode press the button M for around 1~2 seconds and release, the blue
Light will flash twice and go out, at the same time the red light will also go out.
When it detects any movement, the blue light will flash briefly and start recording.
Files will be saved automatically. It will not record without detecting movement.
Save video
Press the button M one time shortly, video file will be saved and red light on,
Becomes to standby mode
Audio Recording
While the red light on (standby mode), press the audio button once, the red light
Will flash and go off.
Press the audio button again, the audio will be saved and red light on (standby)
Power Off
Under the standby mode, please keep pressing the power button for 1~2 seconds
Until the red and blue lights flash twice and go off at the same time.
Reset
For the wrong operation or any other unknown reasons, there is no response from
DVR, please unplug the adaptor from the wall outlet and plug back again



Package content
Charging Dock DVR X 1
RF remote control X 1
Micro USB cable X 1(good quality)
USB Adaptor X1 (Optional)
User manual X 1
Card Reader X 1
