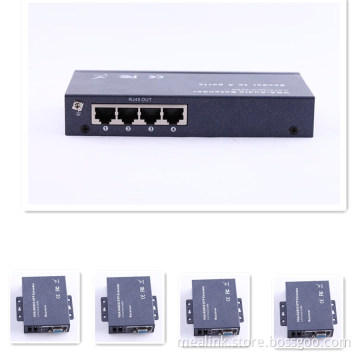

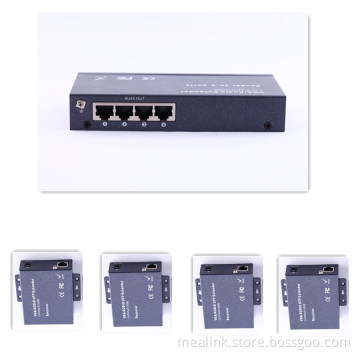

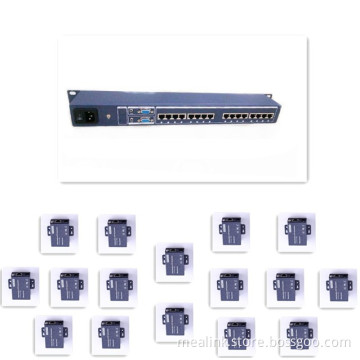

100m 1 to 1 VGA Extender Over Cat5e/6

VGA Audio CAT5/UTP/STP Extender
The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.

Ideal Solution For Digital Signage Applications.
Supports Local And Remote VGA Monitors.
Supports Resolutions To 1920x1440.
Sharpest And Clearest VGA Quality Over CAT5/UTP-STP Cable Of Any Manufacturer.
Built-In Lightning And ESD Surge Protection.
Available With Optional Stereo Audio Or RS232 Control.
Use In-House CAT5/5e/6 Phone Wiring To Locate A Monitor Remotely.
Optional VESA Mounting Bracket Is Available For Mounting The Remote Unit To The Back Of A Flat Panel Monitor.

Local Unit
Host Connection
Multiplatform Support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, And MAC OS 9/10. Male/Female 15-Pin HD Connector For Computer Connection. Optional RS232 Support - Female 9-Pin D Connector. Optional Stereo Audio Support - 3.5mm Stereo Plug.

Local Access
Crisp And Clear 1920x1440 Video Resolution. Female 15-Pin HD Connector For Local VGA Monitor. Optional RS232 Support - Male 9-Pin D Connector. Optional Stereo Audio Support - 3.5mm Stereo Jack.

Remote Unit
Supports Resolutions Up To 1920x1440; Refer To The Resolution Chart Below For Resolutions At Different Lengths. Female 15-Pin HD Connector. Optional 3.5mm Stereo Audio Connection. Optional Male 9-Pin D Connector For RS232.

Video Quality Adjustment
For Different Lengths Of CAT5/5e/6 Cable Is Done Manually For The Video-Only Extender, And Automatically For Audio/Video Or Video/RS232 Extender. Test Pattern For Cable Length.

Power
220 Or 110 VAC At 50 Or 60 Hz Via AC Adapter (Included).
Power Consumption: 6W (Each - Local And Remote Unit).
Use The PWR-48V-9V0, 6A Or PWR-12V-9V0, 6A DC-DC Power Converter To Install The Local Unit In A Telecom Environment.
