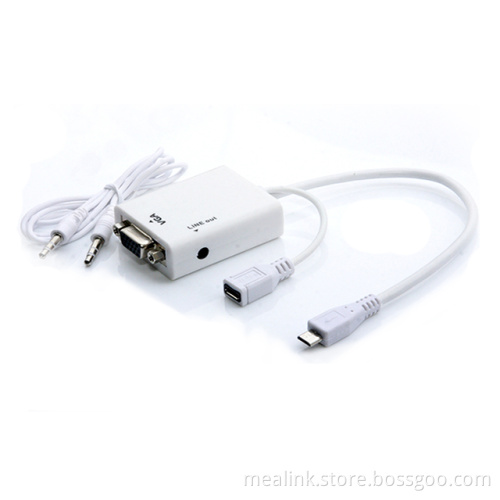

for Samsung/LG/HTC Mobile Phone of Mhl to VGA+Audio Cable

Product Features:

Micro-USB shaped MHL jack;
Automatically switches the phone into USB data / charging or MHL audio / video modes;
This MHL adaptor allows you to create an HDMI output via your handset's micro USB connection.

Compatible with:

Samsung Galaxy S II I9100
HTC G14 Sensation
HTC EVO 3D
Samsung I997 Infuse 4G
HTC Flyer

Your device comes with an MHL adapter included in the box which allows you to view videos and other media that
You have on your phone, on a compatible HD TV.
Specification:
1. Input connector: Micro USB Male X1
Output connector: HDMI Female X1
Other connector: Micro USB Female X1 for charging
2. Size: 257X112X25mm
Weight: 30g
3. Operating temperature range...0 ° C to +70° C
Operating humidity range...10% to 85 % RH (no condensation

To connect your device, follow below steps:
(1). Connect one end of a universal HDMI cable into the MHL Adapter.
(2). Then connect the other end to the HDMI port on your TV. Note: The Universal HDMI cable is not included with
Your device.
(3). Connect your Travel Charger to the MHL Adapter. Warning! : Make sure that you use the Travel Charger that was
Included with your phone. If you use an unapproved travel charger, there is a possibility that the MHL adaptor might
Not function properly.
(4). Connect your Travel Charger to an approved power source.
(5). Connect the MHL Adapter connector into the Power/Accessory Interface port on your device. This is the same
Port that you normally use to connect your Travel Charger. Note: Do not connect the MHL Adapter to your device
Through the Desktop dock. The Video and Audio output will not work correctly.

The TV screen will instantly display what is on your device home screen.
Note: After connecting the MHL Adapter, the upper and lower sides of the TV/Monitor's screen may be cut off. In this
Case, you can adjust the TV/ Monitor in the Settings menu on your TV. Consult your TV owner's manual.
