3D 1X4 1.4V HDMI Splitter 4k*2k (CE/FCC/Certificated Approved)

1x4 HDMI Splitter 1.4v , 4K*2K , Support 3D

The  1x4 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,
accessing to multiple HDMI sinks.
The Splitter allows one HDMI devices to be split easily to 4 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.


Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


FEATURES
One HDMI 1.4a input signal split to four HDMI 1.4a sink devices
Support  Full HD, Full 3D
Support 4K*2K resolution
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/trueHD/LPCM7.1/DTS/AC3
/DSD/HD(HBR)
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
output up to 20metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/2A power supply

CONNECTING AND OPERATING:
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x4 Splitter.


SPECIFICATIONS:
HDMI Version------------------------------------ HDMI 1.4a
HDMI resolution --------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format --------------24bit/deep color 30bit,36bit,48bit
Support audio format---DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD HD(HBR)
Max bandwidth-------------------------------------340MHz
Max baud rate--------------------------------------------10.2Gbps
Input/Output TMDS signal-----------------------------------0.5~1.5Volts p-p (TTL)
Input/Output DDC signal--------------------------5V p-p (TTL)
Input cable distance----------------------------≤15m AWG26 HDMI standard cable
Output cable distance-------------------------------------≤25m AWG26 HDMI standard cable
Max working current------------------------------------600mA
Power adapter format input ---------------------AC (50HZ,60HZ) 100V-240V;Output:DC5V/1A
Operating Temperature range -----------------------------------(-15 to +55)
Operating Humidity range----------------------------5 to 90% RH (No Condensation)
Dimension (L*W*H)-----------------------------115X61X25(mm)
Weight-------------------------------------------200g

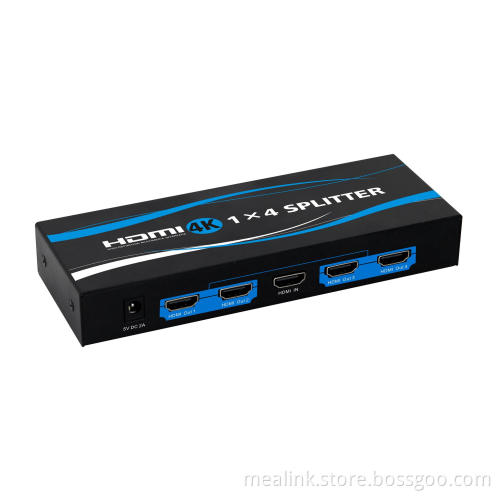

Output1- Output4:HDMI output interface
Input: HDMI input interface
+DC 5V: 5V DC-DC power interface
