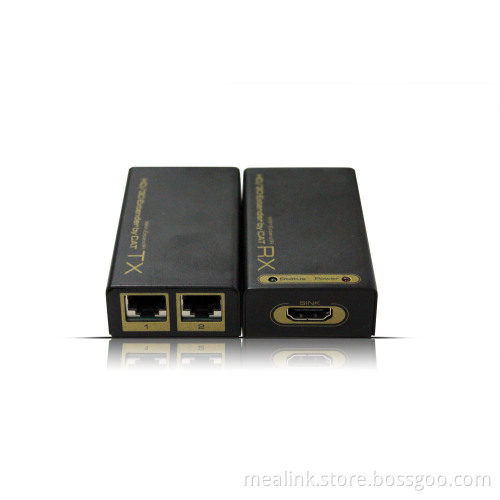

30m Double Cat Cable HDMI Extender with IR

The Extender use double cat-5E or cat-6(recommended) cables up to 30 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.
Long distance transmission of high definition signal is very difficult because HDMI cable is very expensive and infrequent.
The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution,
conference room presentation, school and corporate training environments.

FEATURES
Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission : To use double cat-5e or cat-6(recommended) cables up to 30 meters
instead of using the HDMI cables connect the transmitter and the receiver of the Extender.
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support CEC
Audio format support : DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
Support IR extender function (optional)
LED indication: when power is supplied or device is working, the related light will go bright.
Support up to 30 meters AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/1A power supply



The accessories with the machines lists:
1,5V Power Adaptor
2,one pc of Manual
3,IR receiver unit (optional)
4,IR transmitter unit (optional)
5,IR interface adapter (optional)

SPECIFICATIONS:
Length of CAT-6 cable between Rx and TX....................Up to 30 meters
HDMI Input.................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input.....DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
HDMI Output...............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output....... ...............LPCM7.1/DTS/AC3/DSD
Max bandwidth..........................................165MHz
Max baud rate...........................................4.95Gbps
Input Video signal ..................................... 0.5~1.5Volts p-p
Output DDC signal ................................. 5Volts p-p (TT1L)
Input/Output HDMI cable distance...............≤15AWG26 HDMI standard cable
Max working current..........................................200mA
Power adapter format.....Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
Operating Temperature range.............................. (-15 to +55°C)
Operating Humidity range.....................5 to 90%RH (No Condensation)
Dimension (L x W x H)..................................82x44x22 (mm)
Weight....................................................200g
