1.4V Mini HDMI Repeater

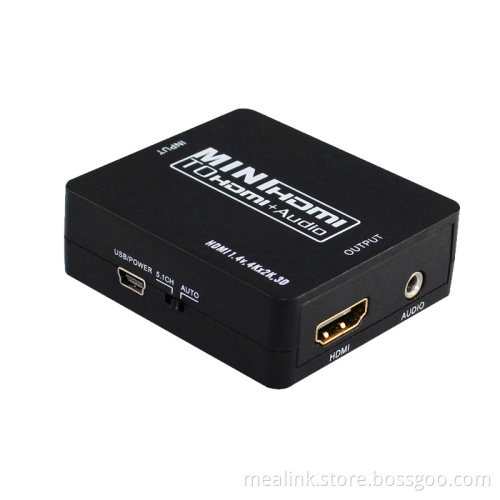

Mini HDMI 1.4 to HDMI+Audio Repeater

I. Introduction
The MINI HDMI1.4 to HDMI+Audio Repeater increases the analog stereo and digital toslink audio output On basis of the HDMI s ignal transmission. The audio signal can be easily connected to the earphones or digital audio power amplifier.

II. Features
No need to install drivers, portable, flexible, plug and play.
Support analog stereo and digital toslink audio output.
Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA DisplayPort 1.1a standards.
Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
Extends 4Kx2K video up to 40 meter transmission distance.

III. Package
MINI HDMI1.4 to HDMI+Audio Repeater
USB Cable(standard to mini)
Operation Manual

IV. Specifications
Frequency Bandwidth 2.97Gbps
Input Ports 1 x HDMI Female ports.
Output port 1 x HDMI Female port, 1x Toslink, 1x Earphone
HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
Power Supply USB POWER
ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
Dimensions (mm) 60(D) x55 (W) x 20(H)
Weight (g) 40
Operating Temperature 0C ~ 40C / 32F ~ 104F
Storage Temperature -20C ~ 60C / -4F ~ 140F
