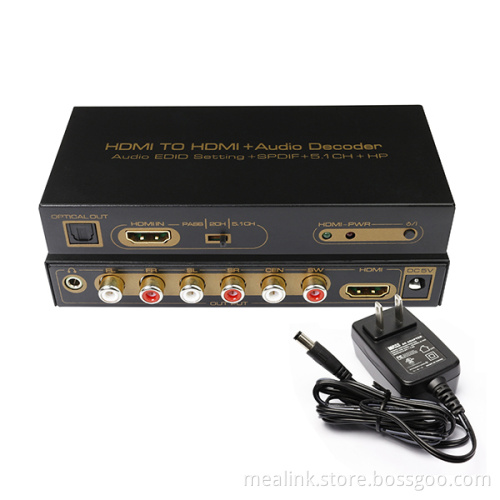

Audio Edid Setting+Spdif+5.1CH HDMI to HDMI + Audio Decoder

Digital audio decoder HDMI TO HDMI + Audio Decoder

Digital Audio Decoder: Used 24-bit audio DSP, 96kHz digital receivers, and 192kHz/24bit ADC and DAC. Support Dolby Digital AC-3 Dolby PRO Logic, DTS, PCM and other digital audio format source decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output, will auto work with different amplifier and speakers to get different sound effects, easy to connect many entertainment devices which with optical and coaxial digital signal and analog output signals (such as: Set-top boxes, HD players, Blu-ray DVD, PS2, PS3, xBox360).

1. 1X HDMI input and 1X HDMI output, can sync separation HDMI audio signal. Supports 1X SPDIF optical digital audio output, 6 channel RCA analog audio output, and 1X headphone jack output.
2. Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
3. Support CEC and HDCP
4. Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
5. Uses 24 bit/96kHz audio DSP and 24bit /192kHz DAC
6. Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format
7. Headphone amplifier output, can drive the general 3.5mm earphone
8. High tone quality, low noise
9. DC5V/1A power adapter

HDMI resolution...Up to 1080P/50/60fs(3D 24/30fs)
Support video color format...24bit/deep color 30bit, 36bit
HDMI Audio Format...DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
Digital audio decode format...Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth...225MHz
HDMI Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...5Volts p-p (TTL)
DSP sample frequency range...32~96 kHz
DSP Bit rate range...16~24 Bit
Analog output level(1kHz@0dB)...1V...RMS
SNR @ 0dB(CCIR/ARM)...≥ 85dB
Distortion...≤ 0.1%
Frequency response...20Hz~20kHz
Headphone output power (1kHz@0dB RL=32)...20MW
HDMI input cable distance...≤ 15m AWG26 HDMI standard cable
HDMI output cable distance...≤ 18m AWG26 HDMI standard cable
Max working current...500mA
Power adapter format Input...AC 100V~240V 50Hz/60Hz, DC5V/1A
Operating Temperature range...-10 to +55°
Storage Temperature range...-20 to +60°
Operating Humidity range...10 to 90%RH (No Condensation)
Storage Humidity range...5 to 95%RH (No Condensation)
Case Dimension (L x W x H)...139X64X22 (mm)
Weight...220g
