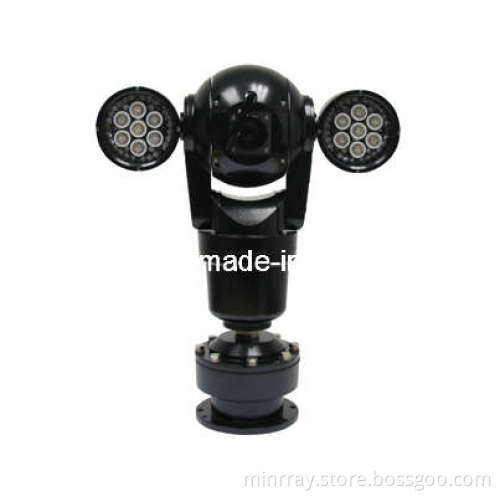

UV90A/UV90A-IR Integrated Shock-Proof PTZ Camera
Dimension
UV90A UV90A-IR
Application:
Vehicle System, Vessel System, Hazardous environment, Border Defense, Seafront Defense etc. High end surveillance.
Technical Parameters
Unique Features:
l The body is made from 5mm-15mm al-alloy material, firm and airproof ;
l Flat designed optical window uses 5mm tempered glass, can prevent distorted images and protect the built-in integrated camera ;
l IP66 waterproof design standard
l with wiper;
l One pair of IR lens available, IR distance more than 80 meters( outdoor);
l Multi installation modes: UP, DOWN , UP30 degree selectable;
Pan/ Tilt Features:
l Step motor with gearbox, accurate position and quick responds;
l Integrated design, attractive appearance;
l Stable operation without dithering and noise;
Camera Features:
l Built-in high resolution integrated zoom camera module .
l Black Light Compensation function;
l Color or B&W image switching function;
l Video WDR;
l Video Stabilizer Privacy zone masking function, up to 24 privacy zones;
l Video freeze function;
Protect Features:
l Embed in surge and lightning protector;
l Meeting IP66 standards, CE, ROHS, FCC standards.
l The body is made from 5mm-15mm al-alloy material, firm and airproof ;
l Flat designed optical window uses 5mm tempered glass, can prevent distorted images and protect the built-in integrated camera ;
l IP66 waterproof design standard
l with wiper;
l One pair of IR lens available, IR distance more than 80 meters( outdoor);
l Multi installation modes: UP, DOWN , UP30 degree selectable;
Pan/ Tilt Features:
l Step motor with gearbox, accurate position and quick responds;
l Integrated design, attractive appearance;
l Stable operation without dithering and noise;
Camera Features:
l Built-in high resolution integrated zoom camera module .
l Black Light Compensation function;
l Color or B&W image switching function;
l Video WDR;
l Video Stabilizer Privacy zone masking function, up to 24 privacy zones;
l Video freeze function;
Protect Features:
l Embed in surge and lightning protector;
l Meeting IP66 standards, CE, ROHS, FCC standards.
Dimension
UV90A UV90A-IR
Application:
Vehicle System, Vessel System, Hazardous environment, Border Defense, Seafront Defense etc. High end surveillance.
Technical Parameters
| Camera, Lens Index (Take Sony 26xD/N for instance) | ||
| Image Sensor | 1/4 inch high quality EXVIEW HAD CCD Sensor | |
| Video Signal | 1.0±0.1VP-P(75Ω, Compound) | |
| Optical zoom | 26X optical zoom,f=3.5-91mm, F1.6-3.8 | |
| Angle of view | 1.6°(farness)--42°(nearness) | |
| Minimum illumination | 0.05LUX | |
| White Balance | Auto/Cloudy/Shade/Fluorescent etc multi modes | |
| Focus | Auto/Manual | |
| Iris | Auto/Manual | |
| Electronic shutter | Auto | |
| BLC | Open/Close | |
| S/N Ratio | >50dB | |
| Pan/Tilt Index | ||
| Pan running | 360º continuous pan rotation | |
| Tilt running | 125º tilt rotation | |
| Pan speed | 0.1º-80º/sec | |
| Tilt speed | 0.1º-40º/sec | |
| Preset control speed | Pan:80°/sec Tilt:40°/sec | |
| Presets | 128 | |
| Input/Output Interface | ||
| Compound Video Interface | BNC Interface,Compound Video 1Vp-p,75Ω non-balance | |
| Control Signal Interface | RS485 interface,White is 485+,Blue is 485- | |
| Control Signal Format | Start bit:1; Data bit:8; Stop bit:1; Baud Rate:2400,4800,9600bps | |
| Power Port | Red and Black cable are power wiring | |
| Electrical Index | ||
| Power Adapter | AC18V/3.1A | |
| Input Voltage | 14VAC-18VAC/18VDC—24VDC | |
| Power Consumption | 30VA(UV90A),50VA(UV90A-IR) | |
| IR parameter | IR LED Lamp | |
| IR distance | 100m | |
| Angle | 18º | |
| IR Lamps | One pair of 7X 1W,6X Φ8 | |
| Power | DC12V | |
| Consumption | 2*6W | |
| Dimension(L×W×H) | Two units of Φ108×85mm | |
| Weight | 2 X0.5kg | |
| Structure Parameter | ||
| Material | Aluminum Alloy | |
| Glass | 5mm tempered optical glass window | |
| Weight | 10KG(UV90A);12KG(UV90A-IR) | |
| Color | Black/White selectable | |
| Machine body Size | Φ177mmx500mm(UV90A) ,405mmx177mmx500mm(UV90A-IR) | |
| Packing Size | 610x410x310 mm(UV90A) ,610X510X310 mm(UV90A-IR) | |
| Packing Material | Carton + EPE | |
| Appendix | AC18V/3.1A Power supply box 1 pc, Manual 1copy, Guarantee 1copy, Certification 1copy | |
| Environment | ||
| Working Temperature | -40ºC ~ +55ºC | |
| Storage Temperature | -10°~ 60° | |
| Working Humidity | 20%~ 90% | |
| Storage Humidity | 20%~ 80% | |
| Working Environment | Indoor , Outdoor | |
| Mounting Bracket | mounting base UV-BM150,connecting trayUV-SM150A,wall mount bracket | |
