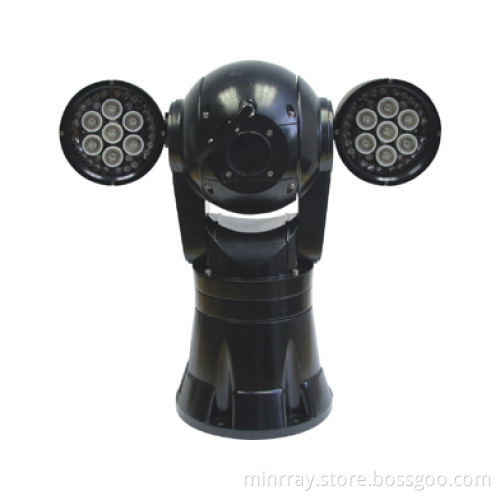

Infrared PTZ Camera (UV90A-BM-R)

Unique Features:
The body is made from 5mm-15mm al-alloy material, firm and airproof.
Flat designed optical window uses 5mm toughened glass, can prevent distorted images with greatest extend and protect the built-in integrated camera.
IP66 waterproof design standard.
360° Continuous pan rotation; While 125° For tilt rotation.
Multi installation modes: UP, DOWN, UP30degree selectable.
Other Features:
Pan Tilt features:
Stepper motor with gearbox, stable operation, accurate position and quick responds
Manual Control Speed for Pan: 0.1° -90° /sec
Manual Control Speed for Tilt: 0.1° -40° /sec
Preset Speed: 90° /sec for pan; 40° /sec for tilt.
Variable pan auto scan speed: 1° -40° /sec available
Variable Apple peel scan speed: 1° -40° /sec for pan; 1° -20° /sec for tilt
One pairs of IR lamps available, more than 100meters of IR distance
Camera Features:
Built in high resolution and variable high zoom camera module
Black Light Compensation function
Selectable Color or B&W image function
Wide Dynamic Video function
Image Stabilizer function
Privacy mask funcion, can support up to 24 privacy zones
Video Freeze function for high speed presets
Built in Decoder feactures:
Integrated multi decoder controller: PELCO P/D protocols
Can make soft address and hard address setting
Chinese/English OSD menu to set the camera and pan tilt function
Environment checking function, check the inside temperature real time;
Will automatically open the fans once the inside temperature exceed the setting limit value.
Powering on self-restoring function: Users can assign the camera movement after powering on.
Change speed proportionally function: Pan/tilt speed and the depth of zoom lens decline proportionally and continuously
The Pan/tilt orientation displays and camera zoom displays variably. Data feedbacks the PTZ orientation.
With pan auto scan function, the pitching angle can be set
Virtual home position can be set
With apply peel scan function
2 pattern function
4 presets tour function, dwell time can be set
255 preset positions with precision error less than ± 0.10
5 channels fixed time auto activate function, to run the preset movements
3 modes to control the wiper function
Camera orientation display function(N, NE, E, SE, S, SW, W, NW total 8 orientations)
2 alarms input, 1 AUX output
OSD Menu Features:
Built-in Chinese/English menu, easy to switch menu between 2 languags
With OSD passport protect function
Support Chinese/English input, can edit title of the user name, camera position and preset position
Can set, run, clear presets, preset tours, privacy zone by menu
L Inside temperature and pan tilt orientation information display
Protect Features:
Embed in surge and lightning protector
Meeting IP66 standards, CE, RoHS, FCC standards
Mechanical Structure:
Al-alloy housing
High strength optical window uses toughened coated glass, of 5mm thickness.
Weight: 10KG(UV90A-BM); 12KG(UV90A-BM-IR)
Electrical Index:
Input Voltate 18VAV--24VAC/18VDC_24VDC
Input Power 45W(without IR)
65W(with IR)
