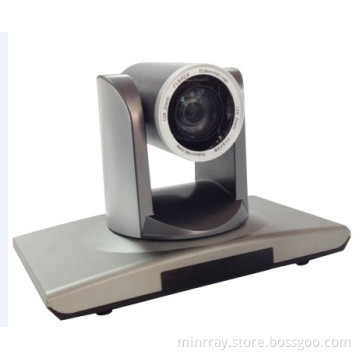

HD Video Conference Camera UV830S

HD Video Conference Camera UV830
20X, 1080P60/50 Full HD,
High Performance, Wide View Angle,
Big Optical Zoom
Main Features
Real Full HD high quality Image
The UV830 employs a 1/2.8 type HD COMS achieving 1920 X 1080 super high quality video images. Frame rate up to 60/50 frame/sec, providing super smooth video, makes full high definition come true.
Low noise and High SNR
The camera video SNR will directly affect the image compression coding efficiency.
Lifelike video image
The UV830 adopts the latest CMOS sensor which is outstanding by its WDR function
20X optical zoom
The UV830 has a maximum zoom ratio of 20X optical zoom. High performance lens with fast and stable auto focus capability.
Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, the UV830 camera is extremely quiet and moves smoothly and very quickly to desired position, also covers a wide shooting range.
Multi-Format Video Outputs including Full HD
The UV830 provides DVI interface (which can convert to YPbPr analog component interface, VGA interface or HDMI interface) and 3G SDI interface. Especially the SDI interface, supports for the 1080P30 high-definition digital video signals over a single coaxial cable transmission of nearly 100 meters. The camera also support 1080P60/50/30/25, 1080I60/50, 720P60/50/30/25 format HD video for meeting different needs of application.
Multiple control methods and control protocols (VISCA, Pelco-D/Pelco-P protocol)
All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232C interface.
By using RS232 cascading interface, two or more cameras can be connected synchronously. (VISCA protocol)
Multi-address
Via OSD/VISCA serial command to set up
128 Presets Position
Up to 128 presets values for pan/tilt/zoom. (10 presets position can be set up by the remote controller. )The camera can retain these presets even when switched off.
Multi-function remote controller
Users are able to control the pan/tilt/zoom and other settings of camera via remote controller, easy to operate.
Relevant parameters can be brought up via the OSD of the camera, and the address code can be set up as well, in that way, which is convenient for the set up of multiple cameras controlled simultaneously.
Infrared remote signal transmission function
The UV830 also can be controlled by the IR remoter of terminal equipment by converting the received infrared remote control signal to serial COM signal and then transmitting. In that way, user terminals can be setting at background.
Optional Upside/Down Installation
Structurally, UV830 supports upside down installation., Also the installation mode can be changed via OSD menu setting or remote controller or serial command.
OSD menu
Chinese/English OSD menu can be easily controlled via remote controller or serial command
Low Consumption auto sleep mode
When stopping working, the camera will enter the sleep mode automatically and reduce the power consumption.
Order Models
UV830S(1080P60/50, 3G SDI)
UV830M(1080P30/25, 1.5G SDI)
UV830C(720P60/50, 720P30/25, 1.5G SDI)
Application
Video conference systems; Telemedicine systems; Tele-education systems and so on
Technical specification
