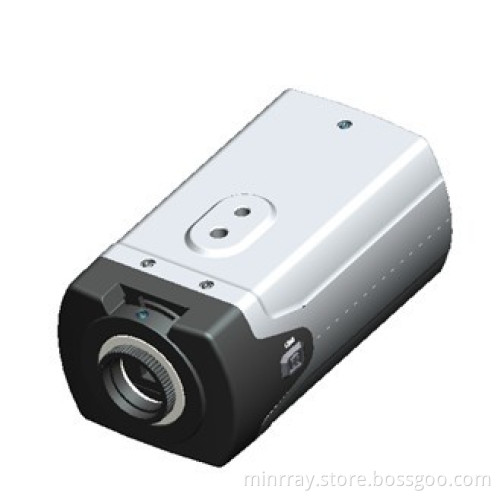

2 Megapixel Fixed HD Camera (MR-D1120)

Main Features
Super High Definition Video
With 1/2.8 inch Sony Sensor, 2.1megapixel high quality HD CMOS transducer, achieve 1920x1080 super high quality video.
Compensation Function
With color, contract, shadow auto compensation function, to get much clear, lifelike video.
Wide range, iris compensation, noise reduction, day/night mode, privacy zone function
Day/night mode auto switching, use IR cut filter, day/night signal output, with 16 zones privacy zones.
Auto Control
With auto exposure, auto Iris control, auto white balance
Full HD video output
Support 1080P60/50/30/25, 1080I60/50, 70P60/50
DVI-I port for high quality video
With DVI-I HD port, can support one channel of YPbPr output and one channel of HDMI output simultaneously. Can connect to HD TV for output directly.
With OSD menu
Can open and close the OSD menu and menu settings by press the button on the camera.
Model number MR-D1120
Camera
Image Sensor 1/2.8 inch high quality Sony HD CMOS sensor
Pixel Static image: 16: 9 2.1 megapixel effective pixel
Video Signal 1080P60/50/30/25; 1080I60/50; 70P60/50
Minimum Lux 0.5LUX
White Balance Day/night mode
Electronic shutter Auto
Back light compensation ON/OFF
S/N Ratio >50dB
Interface
Video interface DVI-I( includes 1 channel YPbPr, and 1 channel HDMI)
Lens interface CS/C(Mount adapter)
Lens Iris Auto iris DC driver
Lens Focus Optional
Power supply HEC3800 power jack
Environment index
Working humidity 10%-90%
Input voltage DC12V
Power consumption 5W(max. )
Application indoor
Structure
Material Al-alloy housing, PC plastic and metal plate for inside materials
Color Silver grey + silver white color
Weight (appro. ) 0.5KGs
Size(WX H X W) 135.5 x 78.5 x 63(MM)
Protection IP50
