Product Description
Product Description
1.10 years production RD experience
2. Metal housing with shielding
3. Qualified test before shipping

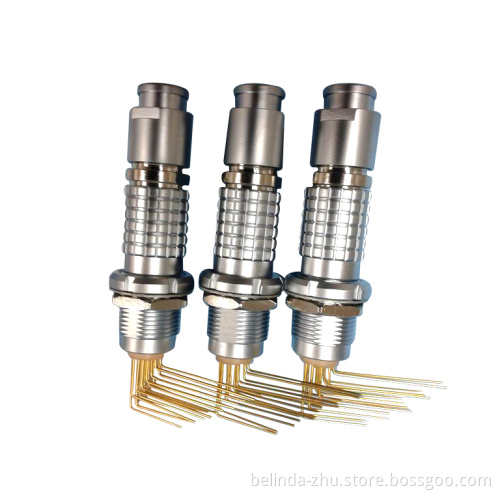

Pcb automotive connectors
1) Security of the push-pull self-latching system;
2) Multicore types with 2 to 32 pins; High-density installation for space-saving;
3) Soldering, crimping and PCB contacts
4) Straight or elbow (90 degree)
5) Multiple key options to avoid mismating between similar connectors;
6) 360-degree screening for full EMC protection
7)Keying system(G is standard key) for connector alignment
It is widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, medical, mechnical equipment, audio/video, test and measurement, communications, automotive.
Type: PCB PANEL
Application: Automotive
Gender: Male female
Insulator material: PPS
Rated Current: 14A
Color: Silvery
Max. Matings: 5000
Working voltage: 600V
Contact type: PCB
Temperature range: -55 deg C----+200 deg C
Shock resistence: 100g, 6ms
Salt spray corrosion: >72h
Housing material: Chrome plated brass
2. Metal housing with shielding
3. Qualified test before shipping
Pcb automotive connectors
1) Security of the push-pull self-latching system;
2) Multicore types with 2 to 32 pins; High-density installation for space-saving;
3) Soldering, crimping and PCB contacts
4) Straight or elbow (90 degree)
5) Multiple key options to avoid mismating between similar connectors;
6) 360-degree screening for full EMC protection
7)Keying system(G is standard key) for connector alignment
It is widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, medical, mechnical equipment, audio/video, test and measurement, communications, automotive.
Type: PCB PANEL
Application: Automotive
Gender: Male female
Insulator material: PPS
Rated Current: 14A
Color: Silvery
Max. Matings: 5000
Working voltage: 600V
Contact type: PCB
Temperature range: -55 deg C----+200 deg C
Shock resistence: 100g, 6ms
Salt spray corrosion: >72h
Housing material: Chrome plated brass
