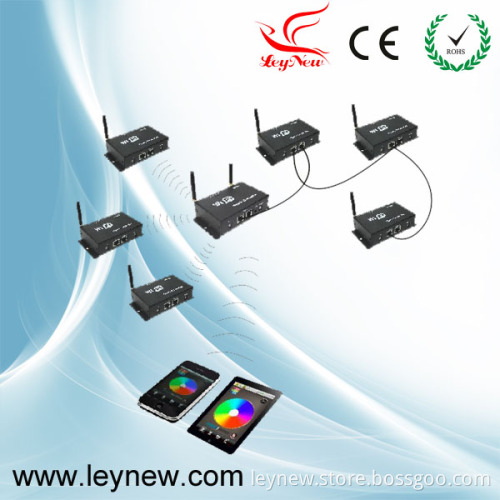

RGB WiFi Multipoint Controller-Group Control (WF200)

Controller technical parameters
Work temperature: -20-60 supply voltage: DC5-24V
External dimension(single): 107*65*30 mm
Packing size: 215*165*55mm
Net weight(single): 246g gross weight(single): 330g
Static consumption: 360mw
Output control: Output radio frequency signals, through the wireless control to achieve more control points(16 points).
Output current: 4A*3 connecting mode: Common anode receiving sensitivity: 802.11b dsss(-5dBm), 802.11b cck (-10dBm), 802.11gofdm(-15dBm)
Software technical parameters
1. Name: Dream color
2. Runtime platform: Android version support android system, ios version support ios system, equipment must have WiFi function.
3. Byte: Android version(622k)\ios version(581k).
4. Language: English
5. Category: Communications
6. Free, green, no plug-ins
Remote control technical parameters
1: Working temperature: -20-60
2: Power supply method: AAA*3
3: Supply voltage: 1.5V*3
4: Standby power: 0.015mw
5: Standby current: 3ua
6: Working current: 200ua
7: Emission current: 10mA
8: Remote control distance: About 50m
9: Standby time: 6 months
Product summarize
 LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth Of market and customer's demand, it is one type controller which integration the newest WiFi technical in the Market. It makes the LED control more convenience, more hommization. We can use an android system or ios system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
 Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m. In the condition of not use the mobile software, also can use the remote control to control, very Convenience, two choices for you.
