12-Key Triac Dimmer 0-10V Output IR

Working temperature: - 20-60
Supply voltage: AC90-240V (50Hz/60Hz)
Output: 1 channel phase control output
Dimmer size: W87 * L87 * H47mm
Controller size: L86 * W33 * H7mm
Packing size: L100 * W100 * H65mm
Net weight: 150g
Gross weight: 205g
Output current: < 0.15A
Maximum output power: 150W
Summarize

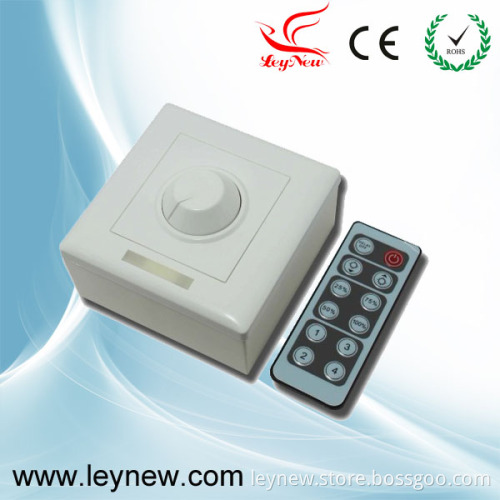

High pressure infrared 12 key panel dimmer is a section dedicated to LED lighting intelligent dimming controller. Using thyristor phase dimming technology, we can adjust brightness by hand knob, we can also use IR wireless remote control to distance dimming. It is suitable for business or family standard type 86 switch socket low box installation, can be surface mounted or dark outfited. It is used for controlling with various kinds of high voltage LED as light source lamps and lanterns, for example: Point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on. It is inexpensive, convenient connection and simple to use, etc. It adjusts brightness through the knob on the infrared remote controller and dimmers. The grey scale level is 128. It owns custom function, delay shutdown function and fixed gray output function. It also provides 0 ~ 10V PWM signal output port which can be used to control other slave control.
AC IN: Power input interface, receiving voltage is AC90-240V.
LOAD: Load output interface, alternating current (AC) output.
PWM: PWM signal output interface, output 0-10V PWM signal, and Specialized in controlling the dimmer with PWM control signal, it is Not allowed to connect LOAD.
