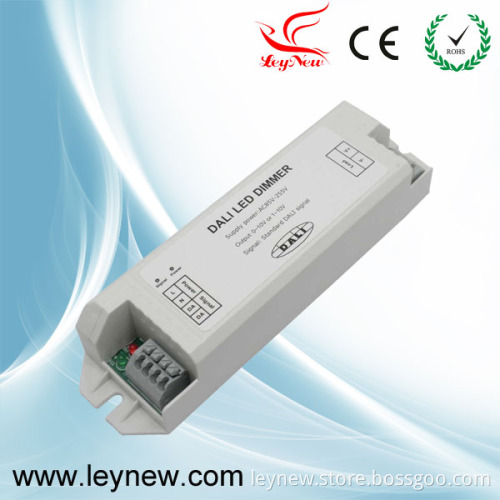

Good Dali Transform 0-10V Converter

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Payment Type:	T/T, Western Union

Product Description

Technical parameters
Supply voltage: AC85V-255V
Load output: 1 channel 0V-10V or 1V-10V signal output
Dimming signal: DALI (IEC62386)
Signal port current: <2mA
Signal segregate voltage: 4KV
Dimmer range: 0.1%-100%
Working temperature: -20-60
Gross weight: 99g
Net weight: 70g
External dimension: L149mmxW40mmxH28mm
Packing size: L150mmxW55mmxH50mm
Connect way: Spring type from screw the wiring way, terminal blocks diameter 2.6 mm
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol BUS, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.
This product adopt to standard DALI dimming signal transform 0/1-10V dimming signal. Adopt protocol standard is IEC62386. Compared with traditional LED dimming way, have a wide range of dimming, various dimming way, high precision dimming, can inquire the state of lamps(such as current brightness, power intensity, the minimum support brightness, address, etc. ), digital control such characteristic.
IP protect ion grade: IP20.
