Popular DMX Controller-Waterproof

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong China
Payment Type:	T/T, Western Union

Product Description

1. SD card controller
2. Program the pattern by yourself
3. DMX function
Technical Parameters
Working temperature: -20-60
Supply voltage: DC 12-24V
Output: 3 channels
Connecting mode: common anode
External dimension:L97W52H30mm
Packing size:L145W95H50mm
Net weight:175g
Gross weight: 210g
Output current:<4A(each channel)
Static power consumption:<1W
Output power: 12V<144W, 24V<288W
Summarization

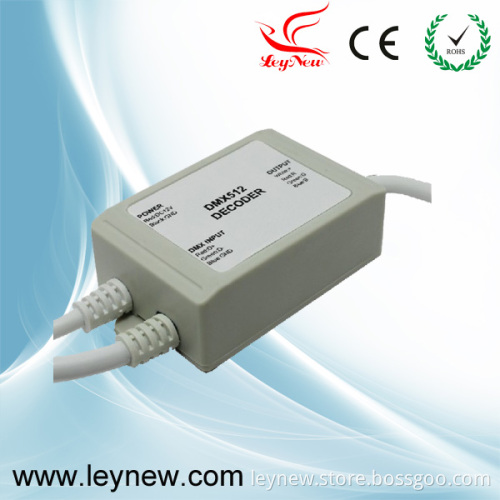

DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
