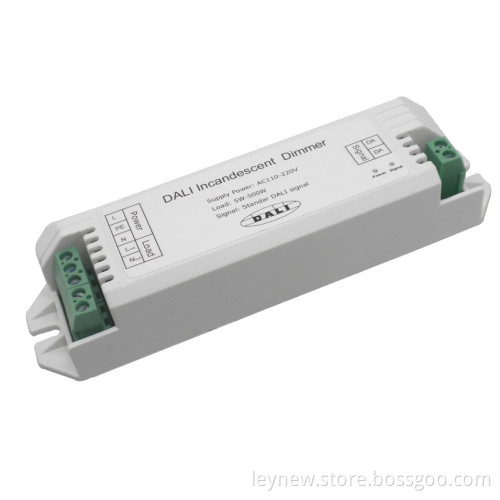

New Design Dali Incandescent Dimmer

Working temperature: -20~60
Supply voltage: AC220V
Dimming signal: According to DALI standaed V0(IEC60929) signal
Output: 1 channel
Dimming range: 0.1%-100%
External dimension: L149mm * W40mm * H28 mm
Packing size: L150mm * W55mm * H50mm
Gross weight: 99g
Net weight: 70g
Connection mode: Green wire connecting terminal
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol, which adopt Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing inquiries, and other powerful state lighting dimming function. Compared with the 0-10V analogue dimming, it's more precise dimming, addressable, stable, focus control, easy installation and so on.
This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional way of comparison, with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED(such as the current brightness, power intensity, the minimum support brightness, address, etc. ), easy distributed control and so on.
