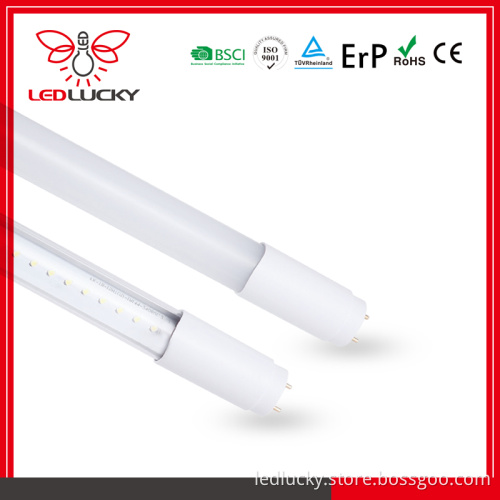

12W ERP CE, RoHS, TUV Approved LED Tube Light (FK-T8-09HX3A12-X-Z04)

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, Guangdong, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

1. Advantage:
> Easy to replace and repair once the external driver stops working
> Beam angle > 150deg
> CE/ UL listed external driver as option
> Low voltage of avg. 40V on LED tube itself; Much safer once there is electricity leakage
> Available for both constant current/ constant voltage on PCB design
2. Feature:
>Instant on/ off
>No UV/ flickering
> Up 50% energy saving and power consumption
>Unique appearance with outstanding performance
>Exclusive mold involving heat sink/driver/circuit design
> Low voltage, safe and reliable
>Certificate: CE, RoHS
3. Packing
Package Size: L924mm*W33mm*H33mm /1PCS
L969*W205*H175mm/ 30PCS each carton
4. Applications
Applied in office, residential place, meeting room, amusement place and shopping mall and etc.

Part No.	Dimension	Led Qty	Power Consumption	Avg. Luminous Flux
FK-T8-09HX3A12-X-Z04	Dia26*900mm	72pcs*SMD3035 LEDs	12W	1408lm, 6000K/clear cover; 1344lm, 6000k/milky cover

Input Voltage	AC180~265V
Frequency Range of PSU	50Hz~60Hz
Total Harmonic Distortion	≤ 20%
Power Factor	> 0.9
Power Efficiency	> 88%
Luminous Efficiency	> 100lm/w
Working Temperature	-20Centi Deg. ~+55Centi Deg.
Storage Temperature	-25Centi Deg. ~+65Centi Deg. optimum @25Centi Deg.
IP Grade	50

Photometric Specifications:

Led Luminous Efficiency	110lm~120lm/W
Color Rendering Index	WW> 70; NW, PW, W> 70
Color Temperature	WW(2800K~3500K); NW(4000~4500k) PW(5000~5500K); CW(5800~6300K)

Mechanical Specifications:

Beam Angle	130°
Mount/ Base type	G13
Material of the lamp shell	PC
