100W ERP CE and RoHS Approved UFO LED High Bay Light/High Bay LED for 5years Warranty
- Payment Type:
- L/C, T/T, Western Union, Money Gram
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union, Money Gram |
Product Description
Product Description

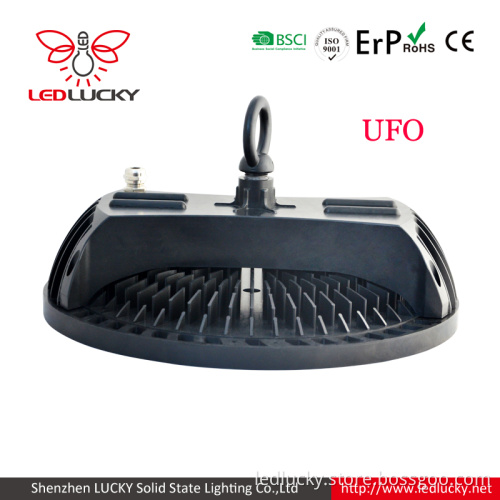

100w ErP CE and RoHS Approved UFO led high bay light with 5years warranty.
1. Features
> Cooling fins as heat sink with forging technic.
> Instant on/ off; No UV/ flickering
> 50% less power consumption than traditional light sources
> VDE/UL listed 3*1.0mm² Rubber cable with cold-pressed terminal
> Constant current driver from Meanwell / PHILIPS
> High power LEDs from Epistar
>. Ies/. Ldt files are available
2. Package
1. Packing: 1 pcs per inner box, 4 inner box per outer carton
2. Inner box size(mm): 415*415*170
3. Inner box G. W.: 5.7 kg
4. Outer Carton Size(mm): 845*430*360.
5. Outer Carton G. W.: 25 kg
3. Installation
1. Take out the UFO high bay and put up-right, and then check to make sure the lamp body is all right
2. As shown in picture below, three mounting types for option:
A) fix the bracket by expansion screw in proper size, and adjust the UFO high bay to achieve expected emitting angle;
B) hang the lamp directly with suspension loop in the right place;
C) align the hole on the UFO high bay with the spiral pole, then rotate the UFO high bay to ensure they are fixed well.
3. Make connection with mains supply as per following instruction and light up
4. Applications
THE UFO led high bay lights are good choice for the lighting in buildings, factory workshop, warehouse, large supermarket, stadiums etc.
Photometric Specifications:
Mechanical Specifications:
1. Features
> Cooling fins as heat sink with forging technic.
> Instant on/ off; No UV/ flickering
> 50% less power consumption than traditional light sources
> VDE/UL listed 3*1.0mm² Rubber cable with cold-pressed terminal
> Constant current driver from Meanwell / PHILIPS
> High power LEDs from Epistar
>. Ies/. Ldt files are available
2. Package
1. Packing: 1 pcs per inner box, 4 inner box per outer carton
2. Inner box size(mm): 415*415*170
3. Inner box G. W.: 5.7 kg
4. Outer Carton Size(mm): 845*430*360.
5. Outer Carton G. W.: 25 kg
3. Installation
1. Take out the UFO high bay and put up-right, and then check to make sure the lamp body is all right
2. As shown in picture below, three mounting types for option:
A) fix the bracket by expansion screw in proper size, and adjust the UFO high bay to achieve expected emitting angle;
B) hang the lamp directly with suspension loop in the right place;
C) align the hole on the UFO high bay with the spiral pole, then rotate the UFO high bay to ensure they are fixed well.
3. Make connection with mains supply as per following instruction and light up
4. Applications
THE UFO led high bay lights are good choice for the lighting in buildings, factory workshop, warehouse, large supermarket, stadiums etc.
| Electrical Specifications | |||
| Part No. | Led Source | Power Consumption | System Power Consumption |
| FK-IL100-100N-FU | High Power LED from Epistar | 100W | 100-110W |
| Input Voltage | 90-305 VAC |
| Frequency Range of PSU | 50Hz~60Hz |
| Total Harmonic Distortion | ≤ 9% |
| Power Factor | > 0.95 |
| Power Efficiency | > 88% |
| Luminous Efficiency | 100-110lm/W |
| Working Temperature | -30Centi deg. ~+55Centi deg. |
| Storage Temperature | -40Centi deg. ~+85Centi deg. optimum @25Centi deg. |
| IP Grade | 65 |
Photometric Specifications:
|
|
|
| Color Rendering Index | > 80 |
| Color Temperature | WW(2800K~3200K);
NW(4000K~4500K); PW(5000~5500K); CW(6000~6500K) |
Mechanical Specifications:
| Beam Angle | 100° |
| Mount/ Base type | Hanging Hook |
| Material of the lamp shell | Aluminium |
