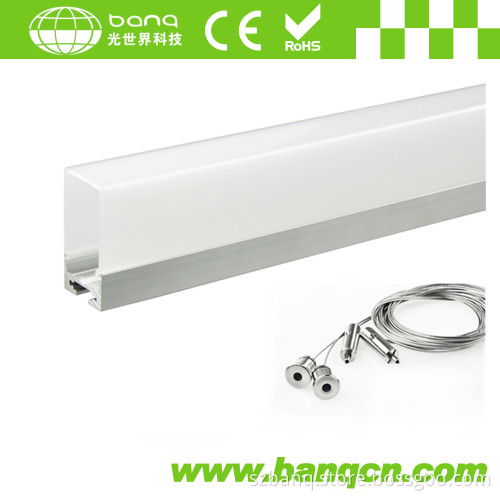

Pendant Aluminium Profile LED Light (BQ1911P) 2 Years Warranty Approved by ERP

Pendant aluminium profile led light(BQ1911P) 2 years warranty approved by ERP

*Parameters of Pendant aluminium profile led light

Power: 28.8/M
Input Voltage: DC24V
Length: 1000MM
LED QTY/Meter: 240
Color: Y/R/B/G/W
Working Temperature: -40--+50
Storage temperature: -50--+60

*Description of Pendant aluminium profile led light
Type: Description type, used in right-angle places.
Aluminum profile: 6063 alumium, anodizing
PC Cover: Diffuser/transparent types.
Frie-proofing grade V1
Caps: White, PC Material, holes in just one end.
Frie-proofing grade V1
FPCB Availuable: 10mm width board

*PC Cover
Material: PC
Fire-proofing Grade: V1
Types: Transparent, disfusser
Treatment process: Stretch
LED Flex Strip
Material: Rolled anneal copper foil
Teatment process: Antioxidant

*Aluminum Profile
Material: 6063-T5 Aircraft Aluminum
Surface Treatment: Anodizing

*Cap
Material: PC
Fire-proofing: V1
Technology: Injection molding

*LED Strip Recommend
BQ00-3528*120Hy12-W10-IP20
BQ00-3528*120Hy24-W10-IP20
BQ00-3014*120Hy24-W10-IP20
BQ00-3014*120Hy12-W10-IP20
Color: R G B Y W

*Application
1. Gradevin
2. Ceiling light
3. Cabinet
4. Home furnishing
5. Any indoor place with right-angle

*Installation Instruction
1. Put the flex strip in aluminum profile, and tear off the back coating.
2. Stick the flex strip into the aluminum slotware smoothly, keep it level.
3. Push the PC cover into the aluminum profile and coating the caps with silicon adhesive.
4. Push caps coated with adhesive into the profile and led it dry naturally.
5. Fix the clips in right palce with M3*15 screw.
6. Install the assembled parts into the clips.

Our services:
1.2 -3years warranty
2. Professioanl engineer team and sales team
3. High quality and warm service after sales
4.800 experienced workers to make high quality products
5.16, 000 square meters factory approved by ISO9001 8 system
6. Strict quality control
8. Fast deliver date, 7-10days
9. Advanced R&D technology
10. High production capacity
11. CE, ROHS, TUV, UL certificate.
12. OEM and ODM is available
13. Low MOQ
14. HIgh efficiency management system

*Why choose us?
Shenzhen Banq Technology Co., Ltd was established in 2006 in Chengdu City, SiChuan Province. Banq has his production base in 2007 in Bao'an District, Shenzhen City as a professional led light manufacturer with R&D, Producing, Sale and Service function.
Banq has 16000 square meters workshop and 1000 employees at the end of May, 2013. Including full experienced R&D team, excellent manage team and good quality production team. All of the manage and producing are follow ISO9001: 2008 standards.
Banq product include led package and (outdoor and indoor )led lighting two series, which has been widely used for lighting, project, commercial application, auto industry and display area. 90% products are exported to Europe and America and have gotten many good feedbacks. We also has established a good and long strategic cooperative partnership relations with some of our big customers.
We have 8 sub-companies who has his own logo at present. Professional R&D team, professional producing team to bring excellent products and service for our customers.
We take"Honest, Concentration, Hard Work, Creation, Humble, Grittiness, Proactive, Strong Enterprise, Loyal, Dedicating and Cooperation" as our idea, we follow "Human-based Management, Technical Innovation, Quality Focus, Continuous Improvement. Honesty Pragmatic, Customer Satisfaction" quality policy.
We always trust"Win-Win Cooperation, Charitable Giving". We do our utmost to create the value for our customers and offer the best service for them.



Trade terms
(1)Payment by T/T, 30% deposit as confirmation of order, 70% balance before shipment
(2)Delivery date: 7-10 days for normal items.
(3)Sample is available
(4)Discount is based on certain quantity.
