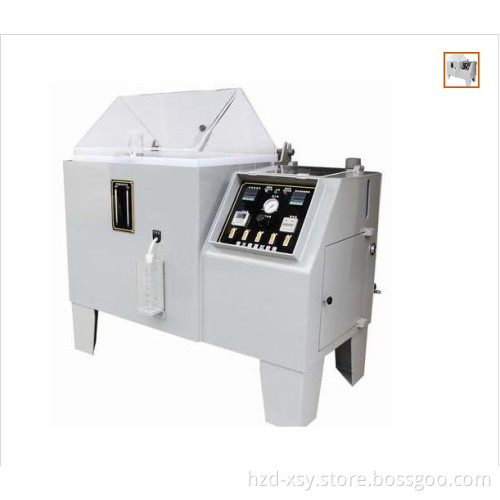

Salt Spray Chamber (HD-101A/B/C)

This machine is manufactured and designed to meet the requirements of relevant standards, such as GB/T2423.17, JIS Z 2371, ASTM B-117 etc. It is used for test the ability of material to resist erodent by brine, those materials can be used in Electrical Appliances, Electrical wire accessories, luminaires etc.

Features:
* All PP and PVC configuration, can working in an acidic and alkaline environment with never been aged.
* It can perform both salt and laurylamine acetate test.
* Patent atomizer and coniform diffuse device makes fog more symmetrical.
* A spray capacity measure barrel is included.
* Test period can be set from 0.1s to 999.9h freely.
* It can water into test chamber automatically.
* Test temperature is controlled by microcomputer.
* It will demist the chamber automatically to make your view more convenient when test over.

Technical parameter:
Model: HD-101A: HD-101B: HD-101C
Power source: AC 220V 50Hz 10A
Air saturator temp range: Ambient to 63 centigrade degree +-1 centigrade degree
Brine temp range: Ambient to 50 centigrade degree+-1 centigrade degree
Atomizing chamber temp range: Ambient to 50 centigrade degree+-1 centigrade degree
Spray pressure: 0.8~2.0kgf/cm2(powered by compressed air)
Spray capacity: 0.5~3.0ml/80cm/h
Spray capacity measuring barrel: 2 sets: 1set: 1set
Test chamber dimension: 90L, 60W, 50H cm: 60L, 45W, 40H cm: 60L, 45W, 40H cm
Exterior dimension: 155L, 106W, 121H cm: 120L, 92W, 105H cm: 110L, 80W, 113H cm
