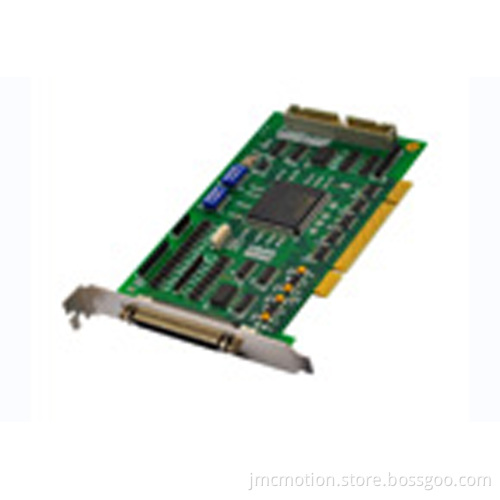

JMC-2610 4 Axis Movment Control Card

Summarize
JMC-2610 is a high ratio of 4 axis movment control cards, using FPGA processing chip. And can realize parameter calcuction. The handwheel input. Flight add/reduction processing. Support multi-axis synchronization, interface card ID set. Dynamic modification target location, asymmetric deceleration functions.
Acceptable encoder signal. And position latched function, when latched signal is activated, encoder current position immediately captured, and can produce interrupt capture the current position signal process by the hardware high speed finish

Standard
1, 32 bit PCI bus, support 3.3 and 5 V
2, 4 axis stepper motor control
3, output pulse as high as 5 MHz
4, pulse output optional: OUT/DIR. CW/CCW
5, support Tand S type speed curve
6, support the movment process change speed (flight speed)
7, programmable acceleration and deceleration time
8, In incremental encoder of 28 bidirectional counter
9, all of digital input isolation avenue 2500 VRMS
10, To limit switch, origin switch, speciall I/O interface
11, programmable interrupt source
12, support CS ID
13, 12 road open collector not isolating digital output (DO)
14, 10 road isolation digital input

Applied range
1, semiconductor related production equipment
2, SMT production equipment
3, LCD production equipment
4, laser process equipment
5, machine set sleep and automation testing equipment
6, Biomedical automatic detection and processing equipment
7, industrial robot
8, Special numerical control equipment
