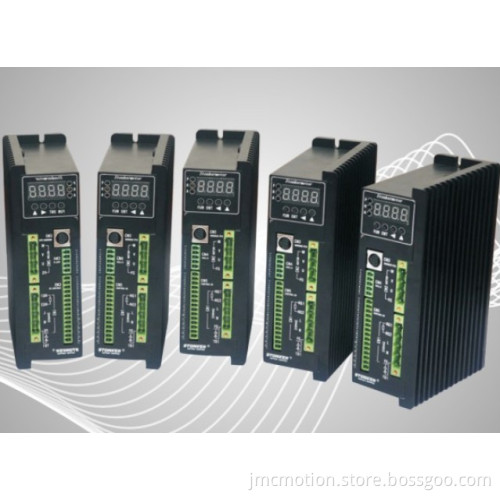

220V Brushless DC Motor Drive Controller for Sewing Machine

Features:
1: DSP+IGBT intelligent module isolating drive +patent PID+PWW control technology
2: Wide range of speed 1: 50. Compared with the original products, more wide speed range
3: 4kHz~16kHz high-speed chopper
4: The highest speed up to 20000RPM
5: Excellent speed stability
6: Belt speed regulation plus or minus 0.5%
7: Motor characteristic hard, when the load change speed can quickly stable
8: And the original products (or conventional AC machine) compared to small, lightweight size realized more power, can control equipment installation space
9: Using a panel data set or software settings, up to 8 period of variable speed operation, 1 r/min for units for speed setting, also can be set up independently acceleration and deceleration time

Basic function:
1: Four kinds of speed control mode, internal speed 0~5V/0~10V analog voltage, potentiometer JOG operation
2: Four key and four LED digital display
3: RUN+DIR and CW/CCW straing method
4: Has the electromagnetic brake function
5: Voltage braking energy function
6: Brake control input and motor hall sensor signal output(speed and measuring position)
7: To provide internal control power supply 12 VDC (only for this drive)
8: Optional RS232/RS485 communication
9: Standard ModBus RTU communication protocol realize many sets of communication control linkage operation(maxinmum 256 Taiwan)
10: But with PLC and touch screen communication to control motor operation and monitoring modification parameter
