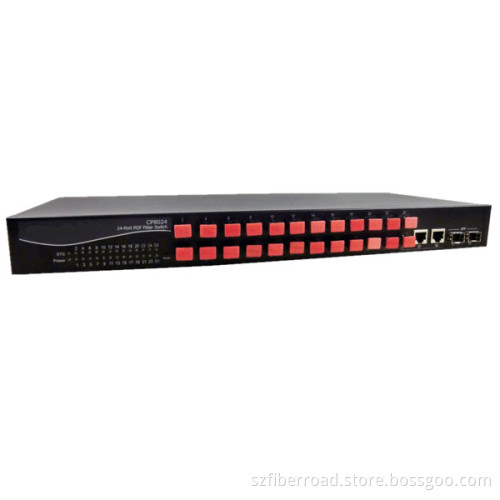

100base-Fx 24-Port POF Switch with 2 Gigabit Tp/SFP Ports Combo Web Smart Switch

100base-Fx 24-Port POF Switch with 2 Gigabit Tp/SFP Ports Combo, Web Smart Switch

*The POF-CP8024 series offer 24-Port 100Base-FX POF Ethernet Switch with 2 Gigabit TP/SFP ports.

Management Features
-Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
-Each Gigabit ports support auto-negotiation-10/20, 100/200, 1000/2000Mbps supported
-Auto-MDI/MDI-X detection on each RJ-45 port
-Prevents packet loss with back pressure (Half-Duplex) and 802.3X PAUSE frame Flow Control (Full-Duplex)
-High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
-4K MAC address table, automatic source address learning and ageing
-Port-Based VLAN and IEEE 802.1Q Tagged VLAN
-Static Port Trunk
-IGMP snooping V1 and V2 for Multi-media application
-Broadcast storm filter
-Port mirroring allows monitoring of the traffic across any port in real time

Physical Ports
24-Port 100Base-FX OptoLock
2-Port Gigabit TP+SFP ports

For efficient management, the POF-CP8024 is equipped with web interface and can be programmed for basic switch management functions such as port speed configuration, VLAN, Port Mirroring, QoS, bandwidth control, IGMP Snooping and Misc Configuration.

Quality of Service
-Supports QoS and bandwidth control on each port
-IEEE 802.1p class of service; Support Strict and WRR mode
-TCP/UDP Port Based QoS

Security
MAC Address Filter
IP Address Filter
-TCP/UDP Filter
