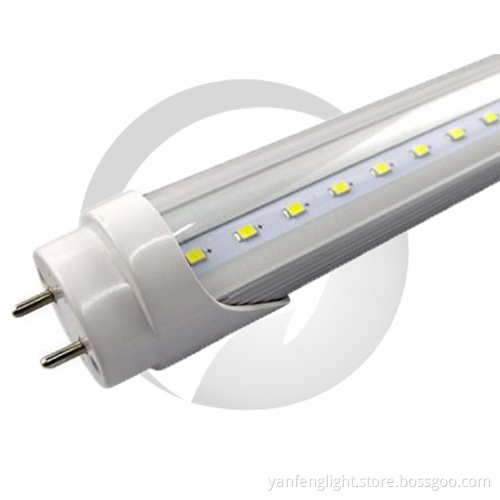

5ft 1500mm 24W T8 LED Tube, SMD3014 T8 Tubes

5ft 1500mm 24w T8 led tube,SMD3014 T8 tubes

--Main specification-

1. Power: 24W
2. Size: (T8) 1500mm
3. Voltage: AC85-265V, 110V, 120, 220, 230V, (customized 277V is available)
4. Luminous flux: 2300lm(6300K, transparent cover)
5. Replae 30W fluorescent tube
6. CE, FCC and RoHS
7. LED chip: Epistar from Taiwan

--Detailed Product Description --

Electrical Specifications :
1. Power: 24W
2. Voltage: AC85-265V, 110V, 120, 220, 230V, 277V
3. Drive efficiency: >85%
4. PF: >0.95

Photometric Specifications:
1. Luminous flux: 2300lm
2. Luminous efficiency: 100lm/W
3. CCT: WW: 2700~3500K; NW: 4000~4500K; CW: 5000~6500K
4. CRI: > 75
5. Beam angle: 120 deg.

Mechanical Specifications :
1. LED Qty & type: 268PCS SMD3014
2. Size: 1500mm T8 5ft
3. Base: G13
4. Material: Aluminum+PC
5. Cover type: Transparent (clear), Frosted or Striped

Other Specifications :
1. Lifespan: 50000h
2. Working temperature: -30~60° C
3. Storage temperature: -40~80° C
4. Warranty: 2 years
5. Cetificate: CE, EMC, RoHS, SAA and C-TICK


--Quotation
The price in the catalogue is based on FOB Shenzhen for final order excluding the freight charge.
For sample order, the price will be a little higher than bulk order, except the free sample.

Aging test: led tube lighting(24 hours)





Packing details:(T8 led tube light)





--Freight
Freight will vary depending on destination, weight(volume weight), courier, or forwarder. We will always choose the cheap but safe transportation for customers.
Customer can also assign the forwarder and pay the freight by customer.

--Shipment
1. For sample order, we use courier like DHL, UPS, FedEx, TNT, EMS. Customer can assign the courier.
2. For larger order, we could use courier, air cargo or ocean shipping.
3. Customer can also assign your forwarder to make the transportation.
