Hot selling smd soldering rework station

Hot selling smd soldering rework station

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 2 Set/Sets

Min. Order:: 2 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean

Port:: Shenzhen Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	1000set/month
Supply Ability:	10000set/year
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,CCC,ROHS and ISO9001:2008
Transportation:	Ocean
Port:	Shenzhen Port

Product Description

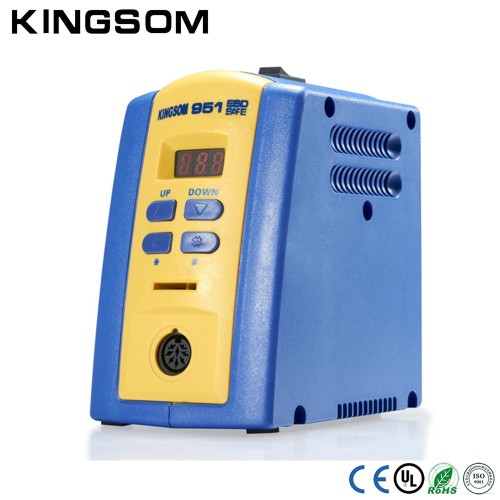

Hot selling smd soldering rework station

How to use the welding station?

1. First, plug in the power supply of the welding station first, and adjust the temperature to the highest temperature. If the voltage is unstable, it cannot be used normally, otherwise the voltage transformer is likely to be burned.

2. Adjust the operating temperature of the soldering station to the lowest temperature through the adjustment button.

3. After the soldering station is turned on, it is better to use the lead-free soldering station when the temperature is adjusted to the most suitable condition. Because this soldering station has a temperature locking function, the temperature can be fixed to prevent temperature changes. And change the whole welding results.

4. After a few minutes of use, the soldering station will operate at a normal constant temperature.

In addition to the soldering statioin, our company also has many products, such as Soldering Fume Extractor, Solder Paste Dispenser, Pneumatic Hand-held Screw Feeder,Extruder Screw Feeder and Robot Arm Machine. If you need these products, you can contact us, we will reply to you as soon as possible.

Product Description

1. Excellent thermal recovery

2. Suitable for lead free soldering

3. Control Card can lock the temperature

4. Quick and easy offsetting of tip temperature by the digital offset function

5. Low temperature alarm function is provided

6. Auto Sleeping mode and Automatic Shut off when not use

7. ESD safe by design.

Model	FX-951
Temperature Range	200°C- 450°C or 50°C- 500°C
Temperature Stability(no load)	±5°C
Output Voltage	24VAC
Max Power	75W
Time of temperature rising(20°C- 350°C)	< 50 Sec
Heating Theory	Induction Heater
Tip to Ground Resistance	< 2Ω
Tip to Ground Potential	< 2mV
Auto Sleeping	Yes
Temperature- Lock Mode	Control card

Specifications

Model	FX-951
Temperature Range	200°C- 450°C or 50°C- 500°C
Temperature Stability(no load)	±5°C
Output Voltage	24VAC
Max Power	75W
Time of temperature rising(20°C- 350°C)	< 50 Sec
Heating Theory	Induction Heater
Tip to Ground Resistance	< 2Ω
Tip to Ground Potential	< 2mV
Auto Sleeping	Yes
Temperature- Lock Mode	Control card
